Festo
30657

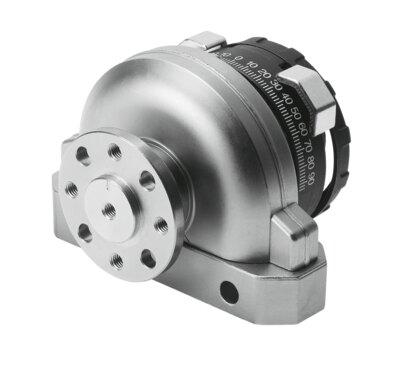

Quarter turn actuator DSRL-32-180-P-FW
The Festo 30657 is a size 32 double-acting rotary vane industrial component featuring a 0 degree to 180 degree swivel angle with an adjustable range matching the same span and a 1.2 degree cushioning angle. It operates on compressed air as per ISO 8573-1:2010 [7:-:-] within a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar), delivering a theoretical torque of 10 Nm at 6 bar and a maximum swivel frequency of 3 Hz. The unit incorporates elastic cushioning rings and pads at both ends, a G1/8 pneumatic connection, through-hole mounting, and supports any mounting position while withstanding a maximum axial force of 75 N and radial force of 200 N. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this 1300 g component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 30657
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 30657.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Cushioning angle
- 1.2 deg
- Adjustment range of swivel angle
- 0 deg...180 deg
- Swivel angle
- 0 deg...180 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- None
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Max. swivel frequency at 6 bar
- 3 Hz
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. axial force
- 75 N
- Max. radial force
- 200 N
- Theoretical torque at 6 bar
- 10 Nm
- Product weight
- 1300 g
- Type of mounting
- With through-hole
- Pneumatic connection
- G1/8
- Covering material
- PA-reinforced
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- NBR
- Housing material
- Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 30657. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
