Festo
30658

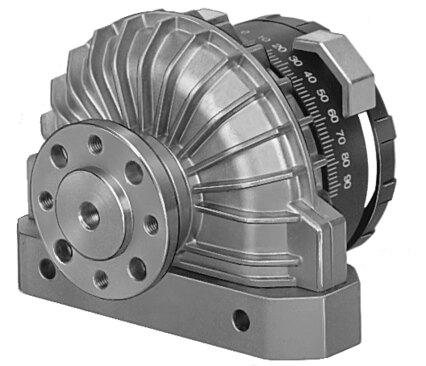

Quarter turn actuator DSRL-40-180-P-FW
The Festo part number 30658 is a size 40 double-acting rotary vane industrial component featuring an adjustable swivel angle of 0 degrees to 180 degrees with a 0.9-degree cushioning angle. This unit operates on compressed air according to ISO 8573-1:2010 [7:-:-] at an operating pressure range of 0.15 MPa to 0.8 MPa, delivering a theoretical torque of 20 Nm at 6 bar and a maximum swivel frequency of 3 Hz. It incorporates elastic cushioning rings or pads at both ends, accommodates any mounting position via a through-hole design, and supports a maximum axial force of 120 N alongside a maximum radial force of 350 N. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this 2400 g component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 30658
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 30658.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Cushioning angle
- 0.9 deg
- Adjustment range of swivel angle
- 0 deg...180 deg
- Swivel angle
- 0 deg...180 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- None
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Max. swivel frequency at 6 bar
- 3 Hz
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. axial force
- 120 N
- Max. radial force
- 350 N
- Theoretical torque at 6 bar
- 20 Nm
- Product weight
- 2400 g
- Type of mounting
- With through-hole
- Pneumatic connection
- G1/4
- Covering material
- PA-reinforced
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- NBR
- Housing material
- Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 30658. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
