Name: Festo 30684 Manifold block PRS-3/8-4-B
Brand: Festo

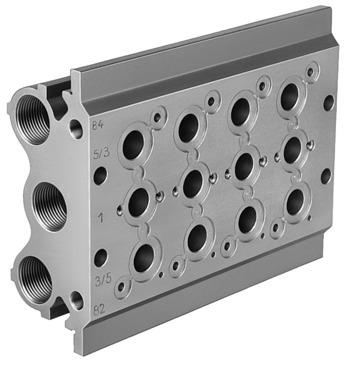

Manifold block PRS-3/8-4-B

This Festo industrial component, part number 30684, features a durable aluminum sub-base designed for up to 4 valve positions with through-hole mounting. It includes G3/4 pneumatic connections for ports 1, 3, and 5, alongside G1/8 pilot exhaust air ports 82 and 84, while maintaining VDMA24364-B1/B2-L LABS conformity at a total product weight of 2630 g. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 30684
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 30684.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Max. no. of valve positions: 4
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Product weight: 2630 g
Type of mounting: With through-hole
Pilot exhaust air port 82: G1/8
Pilot exhaust air port 84: G1/8
Pneumatic connection 1: G3/4
Pneumatic connection 3: G3/4
Pneumatic connection 5: G3/4
Material of sub-base: Aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 30684. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
