Festo
30979

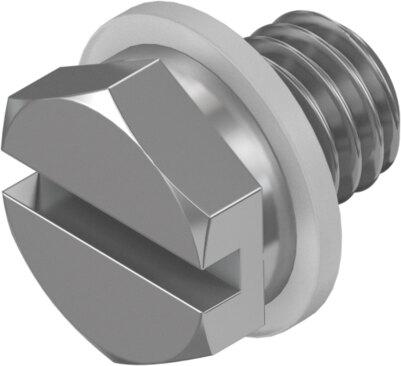

Blanking plug B-M3-S9
This Festo industrial component, part number 30979, is supplied in a pack size of 10 units with a product weight of 1 g per blanking plug. Constructed from high-alloy stainless steel with an NBR and high-grade steel O-ring, the unit features an M3 external thread pneumatic connection 1 and mounts via an external hexagon AF4.5 or a 0.8 mm slot. The part complies with RoHS material notes, VDMA24364-B1/B2-L LABS conformity, and operates at a nominal tightening torque of 0.48 Nm with a tolerance of ±55%. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 30979
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 30979.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Pack size
- 10
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Nominal tightening torque
- 0.48 Nm
- Tolerance for nominal tightening torque
- ±55%
- Product weight
- 1 g
- Type of mounting
- External hexagon AF4.5 | Slot 0.8 mm
- Pneumatic connection 1
- External thread M3
- Note on materials
- RoHS compliant
- Blanking plug material
- high-alloy stainless steel
- O-ring material
- High-grade steel | NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 30979. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
