Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

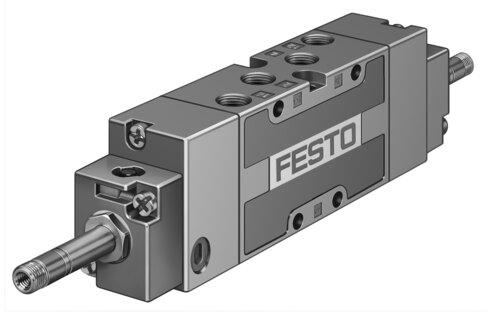

Reference imageConfirm configuration by manufacturer part number.
Festo
30995
Air solenoid valve MFH-5/3B-1/8-S-B
The Festo 30995 is an electrical 5/3-way pressurized industrial component featuring a piston gate valve structural design with a soft sealing principle and positive overlap lap. This 26 mm wide valve delivers a normal nominal flow rate of 1000 l/min through G1/8 pneumatic working ports across an operating pressure range of -0.9 bar to 10 bar, utilizing a mechanical spring reset and an external pilot air supply port with pilot pressures from 3 bar to 10 bar. It includes a non-detenting manual override, supports any mounting position, and achieves a maximum switching frequency of 3 Hz with an off switching time of 21 ms. Submit the exact part number, quantity, and application requirements to receive an RFQ.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 30995
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 30995.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- G1/8
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Nominal width
- 8 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Max. switching frequency
- 3 Hz
- Switching time off
- 21 ms
- On switching time
- 23 ms
- Changeover time
- 16 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse on 1 signal
- 3700 µs
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 30995. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
