Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
3111

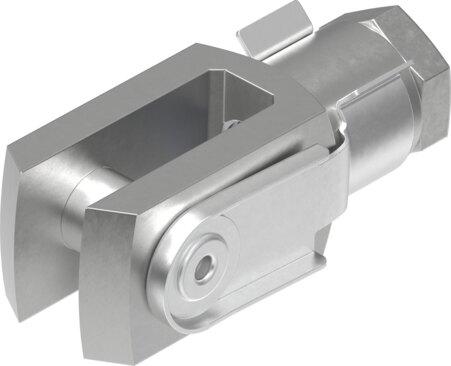

Rod clevis SG-M8
The Festo part number 3111 is an M8 industrial component featuring a galvanized steel clevis, bolt, and nut with an internal M8 threaded connection. Conforming to DIN 71752 and ISO 8140 standards, this RoHS-compliant assembly has a product weight of 53 g, a corrosion resistance class of CRC 1, VDMA24364-B2-L LABS conformity, and an ambient temperature range of -40 °C to 150 °C, while excluding copper over 1% by mass and specific electrical components for Li-ion battery production suitability. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3111
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3111.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M8
- Conforms to standard
- DIN 71752 | ISO 8140
- Threaded connection
- Internal thread M8
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 1% by mass of copper are excluded from use. | Circuit boards, lines, electrical push-in connectors and coils are excluded
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 53 g
- Note on materials
- RoHS compliant
- Bolt material
- Steel | Galvanized
- Clevis material
- Steel | Galvanized
- Nut material
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3111. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
