Festo
31317

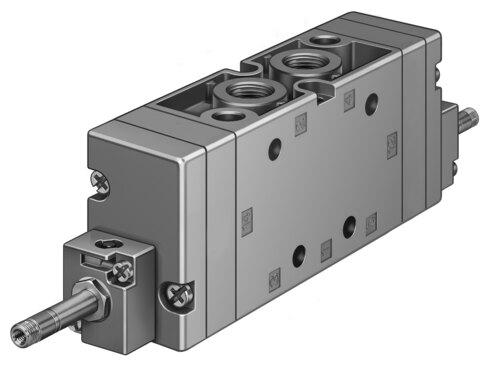

Air solenoid valve MFH-5/3G-3/8-S-B
The Festo 31317 is an electrical 5/3-way closed piston gate valve featuring a nominal width of 12 mm, a 40 mm width, and a normal nominal flow rate of 2200 l/min through G3/8 pneumatic working ports. This piloted component operates within a pressure range of -0.09 MPa to 1 MPa using an external pilot air supply port, a mechanical spring reset method, and a soft sealing principle with adjustable exhaust air function. Additional specifications include non-detenting manual override, reversible flow direction, positive overlap lap, any mounting position, and a pilot pressure of 0.3 MPa to 1 MPa. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 31317
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 31317.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Width
- 40 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2200 l/min
- Pneumatic working port
- G3/8
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Nominal width
- 12 mm
- Width dimension
- 41 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Max. switching frequency
- 3 Hz
- Switching time off
- 96 ms
- On switching time
- 20 ms
- Changeover time
- 54 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse on 1 signal
- 3700 µs
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 °C...60 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 31317. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
