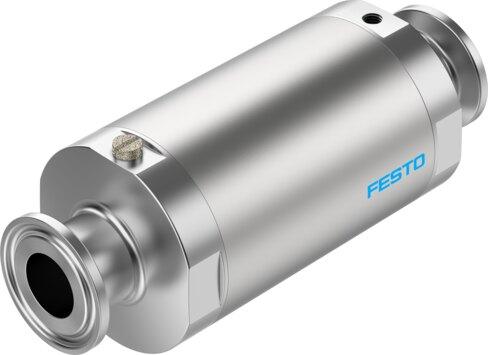

Reference imageConfirm configuration by manufacturer part number.
Festo
3174282
Pinch valve VZQA-C-M22C-...
The Festo 3174282 is a pneumatically operated, externally controlled 2/2-way monostable pinch valve featuring a soft sealing principle and a mechanical spring reset method. Designed for in-line installation in any mounting position, this component accommodates nominal widths of DN 6, 15, or 25, and supports multiple fitting connections including ASME-BPE, DIN 32676, G-thread, and NPT variants. It operates with a medium pressure from 0 bar to 6 bar, an operating pressure of 3.5 bar to 6 bar, and a nominal pressure PN of 10, while handling compressed air, water, and media with a maximum viscosity of 4000 mm²/s. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3174282
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3174282.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Pinch valve, pneumatically operated
- Actuation type
- Pneumatic
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Clamp according to ASME-BPE Type A | Clamp according to ASME BPE type B | Clamp according to DIN 32676 series A | G1/4 | G1/2 | G1 | 1/4 NPT | 1/2 NPT | 1 NPT
- Nominal width DN
- 6 | 15 | 25
- Valve function
- 2/2-way, closed, monostable
- Flow direction
- Reversible
- Medium pressure
- 0 bar...6 bar
- Note on the medium pressure
- Use in the vacuum range was tested up to -0.09 MPa with the air at | room temperature. Depending on the application, a counter-vacuum | may have to be created on the control side to guarantee the media ow.
- Operating pressure
- 3.5 bar...6 bar
- Nominal pressure of tting PN
- 10
- Burst pressure
- 16 bar
- Reset method
- Mechanical spring
- Type of control
- Externally controlled
- Auxiliary pilot air port 12
- M3 | M5
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:1]
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:1] | Water
- Max. viscosity
- 4000 mm²/s
- Temperature of medium
- -5 °C...100 °C
