Festo
31743

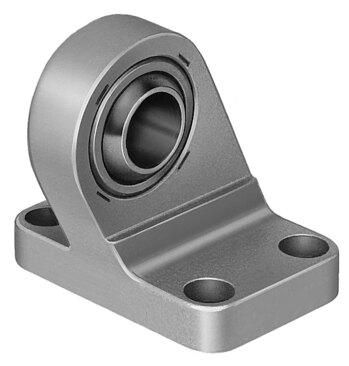

Clevis foot LSNG-63
The Festo part number 31743 is an industrial component featuring a size 63 dimension built on the VDMA 24562 norm with a product weight of 534 g. Constructed with spheroidal graphite cast iron mounting material and a steel and PTFE rod end bearing, this unit operates within an ambient temperature range of -40 °C to 150 °C and supports a maximum load capacity of 4 kN. It includes a CRC rating of 1 for low corrosion stress, VDMA24364-B2-L LABS conformity, and RoHS compliant materials. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 31743
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 31743.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 63
- Based on norm
- VDMA 24562
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...150 °C
- Max. load capacity
- 4 kN
- Product weight
- 534 g
- Note on materials
- RoHS compliant
- Mounting material
- Spheroidal graphite cast iron
- Rod end bearing material
- Steel | PTFE
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 31743. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
