Festo
31761

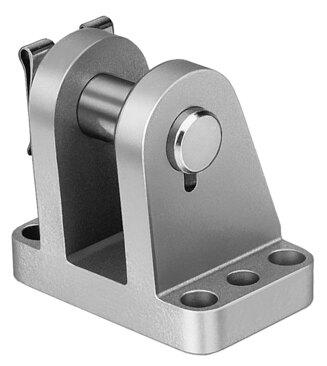

Clevis foot LBG-32
The Festo part number 31761 is an industrial component featuring a size 32 specification and a maximum load capacity of 0.9 kN with a product weight of 220 g or 7.75 oz. Constructed with cast stainless steel mounting material, case-hardened steel bolts, and spring steel fuse material, it holds a corrosion resistance class rating of CRC 2 for moderate corrosion stress, VDMA24364-B2-L LABS conformity, and RoHS compliance for material notes. This unit operates within an ambient temperature range of -40 °C to 150 °C and is suitable for the production of Li-ion batteries subject to the exclusion of metals containing more than 5% copper by mass, excluding printed circuit boards, cables, electrical connectors, and coils. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 31761
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 31761.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 5% by mass of copper are excluded from use. | This excludes printed circuit boards, cables, electrical connectors and | coils.
- Ambient temperature
- -40 °C...150 °C
- Max. load capacity
- 0.9 kN
- Product weight
- 220 g | 7.75 oz
- Note on materials
- RoHS compliant
- Mounting material
- Cast stainless steel
- Bolt material
- Case-hardened steel
- Fuse material
- Spring steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 31761. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
