Festo
31772

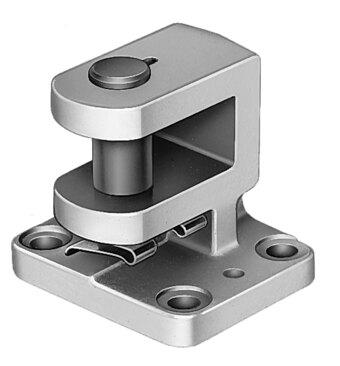

Right-angle clevis foot LQG-80
The Festo part number 31772 is an industrial component featuring a size of 80 with a maximum load capacity of 6 kN and a product weight of 1126 g. Constructed with spheroidal graphite cast iron mounting material, case-hardened steel bolts, and spring steel fuse material, it holds a corrosion resistance class of CRC 1 for low corrosion stress and operates within an ambient temperature range of -40 °C to 150 °C. This RoHS compliant unit conforms to VDMA24364-B1/B2-L LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 31772
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 31772.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 80
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...150 °C
- Max. load capacity
- 6 kN
- Product weight
- 1126 g
- Note on materials
- RoHS compliant
- Mounting material
- Spheroidal graphite cast iron
- Bolt material
- Case-hardened steel
- Fuse material
- Spring steel
