Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

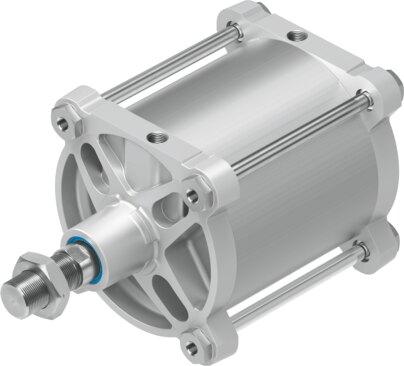

Reference imageConfirm configuration by manufacturer part number.
Festo
3178601
ISO cylinder DSBG-320- -P-N3
The Festo 3178601 is a double-acting industrial component featuring a 320 mm piston diameter, an M48x2 external piston rod thread, and a variable stroke ranging from 1 mm to 2250 mm based on ISO 15552 standards. Built with a structural design comprising a piston, piston rod, tie rod 1, and cylinder barrel, it operates on compressed air per ISO 8573-1:2010 [7:4:4] within an operating pressure range of 0.06 MPa to 1 MPa (0.6 bar to 10 bar) and delivers theoretical forces of 48255 N advancing and 46385 N retracting at 6 bar. This unit incorporates elastic cushioning rings at both ends, a moderate corrosion resistance class (CRC 2) rating, VDMA24364-B1/B2-L LABS conformity, and functions in ambient temperatures from -20 °C to 80 °C with oil lubrication enabled. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3178601
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3178601.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...2250 mm
- Piston diameter
- 320 mm
- Piston rod thread
- M48x2
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 12.6 J
- Theoretical force at 6 bar, retracting
- 46385 N
- Theoretical force at 6 bar, advancing
- 48255 N
- Moving mass at 0 mm stroke
- 16912 g
- Additional moving mass per 10 mm stroke
- 249 g
- Basic weight with 0 mm stroke
- 50231 g
- Additional weight per 10 mm stroke
- 623 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G1
- Note on materials
- RoHS compliant
- Cover material
- Die-cast aluminum, coated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3178601. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
