Festo
3192066

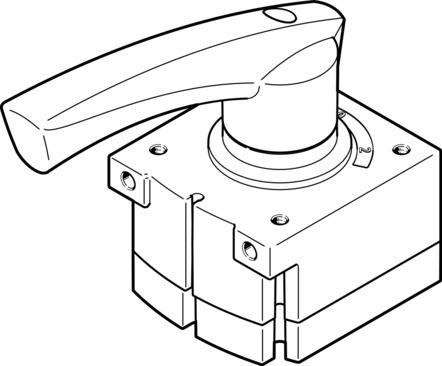

Hand lever valve VHER-H-B43C-B-G12
The Festo 3192066 is a manual rotary vane industrial component featuring a 4/3-way closed valve function, a 12 mm nominal width, and a G1/2 pneumatic working port. Delivering a normal nominal flow rate of 3800 l/min across an operating pressure range of 0 bar to 10 bar, this directly controlled unit includes an adjustable exhaust air function and supports vacuum operation exclusively at connection 3. Designed with a hard sealing principle, a non-reversible flow direction, and moderate corrosion resistance, it requires hand operation only and permits oil-lubricated compressed air media conforming to ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3192066
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3192066.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 4/3-way, closed
- Actuation type
- Manual
- Width
- 80 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 3800 l/min
- Pneumatic working port
- G1/2
- Operating pressure
- 0 bar...10 bar
- Information on operating pressure
- Vacuum operation at connection 3 only | In dual pressure mode, the pressure at port 1 must be higher than at | port 3.
- Structural design
- Rotary vane
- Nominal width
- 12 mm
- Exhaust air function
- Adjustable
- Application note
- Only operate by hand
- Sealing principle
- Hard
- Type of control
- directly
- Flow direction
- Non-reversible
- Underlap
- Yes
- Switching position indication
- with accessories
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...80 °C
- Ambient temperature
- -20 °C...80 °C
- Actuating torque
- 5 Nm
- Product weight
- 860 g
- Type of mounting
- Alternatively: | Front panel mounting | With through-hole
- Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- G1/2
- Pneumatic connection 3
- G1/2
