Festo
3192077

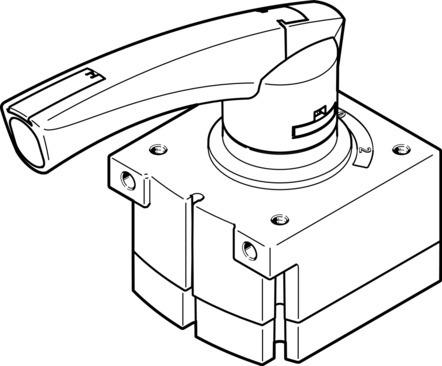

Hand lever valve VHER-P-H-B43E-B-G12
The Festo 3192077 is an 80 mm wide industrial component featuring a 4/3 exhausted valve function with a direct, non-reversible rotary vane structural design and a nominal width of 12 mm. This manually actuated component delivers a normal nominal flow rate of 3800 l/min through G1/2 pneumatic working ports across an operating pressure range of 0 bar to 10 bar, supporting vacuum operation at connection 3 and dual pressure modes where port 1 pressure exceeds port 3. Engineered with an adjustable exhaust air function, hard sealing principle, and moderate corrosion stress resistance class (CRC 2), it operates on compressed air meeting ISO 8573-1:2010 [7:4:4] standards with oil lubrication compatibility. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3192077
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3192077.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 4/3 exhausted
- Actuation type
- Manual
- Width
- 80 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 3800 l/min
- Pneumatic working port
- G1/2
- Operating pressure
- 0 bar...10 bar
- Information on operating pressure
- Vacuum operation at connection 3 only | In dual pressure mode, the pressure at port 1 must be higher than at | port 3.
- Structural design
- Rotary vane
- Nominal width
- 12 mm
- Exhaust air function
- Adjustable
- Application note
- Only operate by hand
- Actuator lock
- can be closed with accessories
- Sealing principle
- Hard
- Type of control
- directly
- Flow direction
- Non-reversible
- Underlap
- Yes
- Switching position indication
- with accessories
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...80 °C
- Ambient temperature
- -20 °C...80 °C
- Actuating torque
- 5 Nm
- Product weight
- 740 g
- Type of mounting
- Alternatively: | Front panel mounting | With through-hole
- Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- G1/2
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3192077. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
