Festo
3192932

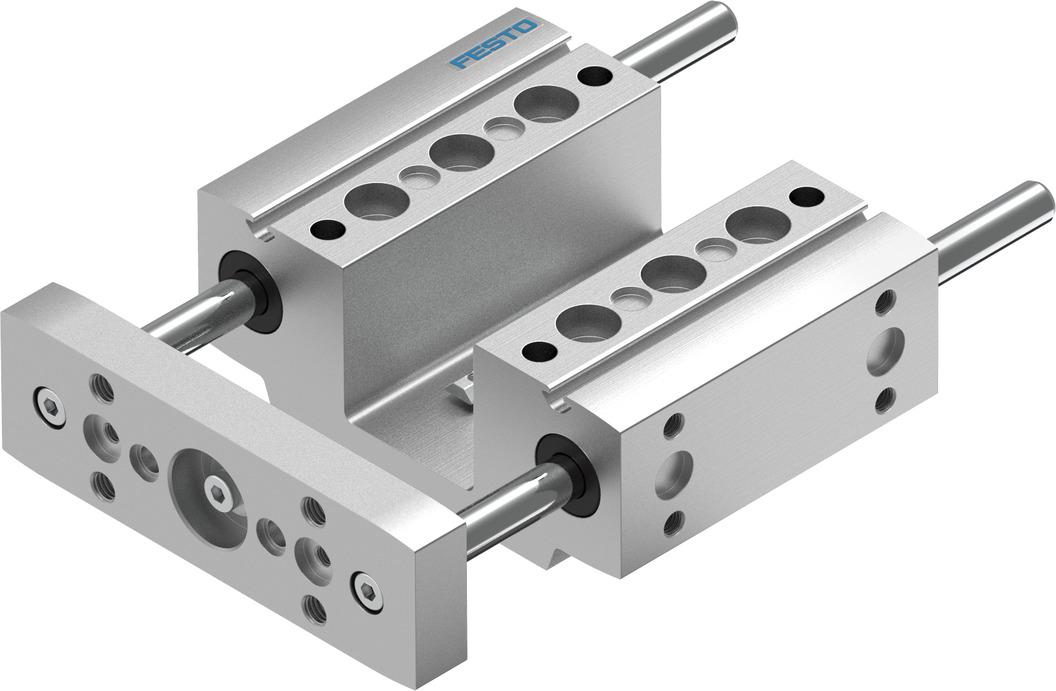

Guide unit EAGF-P1-KF-16-50
The Festo part number 3192932 is a size 16 industrial guide featuring a structural design with a recirculating ball bearing guide and a 50 mm stroke, delivering a reversing backlash of 0 µm for mounting in any position. This component accommodates a maximum speed of 1 m/s, a maximum acceleration of 25 m/s², an ambient temperature range of 0 °C to 50 °C, and an IP40 degree of protection with a CRC rating of 0 and VDMA24364-B2-L LABS conformity. It supports dynamic forces up to 160 N in Fy and Fz, static forces up to 355 N, dynamic torques of 6 Nm for Mx and 4 Nm for My, and static moments of 13 Nm for Mx and 9 Nm for My. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3192932
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3192932.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Stroke
- 50 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Structural design
- Guide
- Max. acceleration
- 25 m/s²
- Max. speed
- 1 m/s
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Max. force Fy
- 160 N
- Max. force Fy static
- 355 N
- Max. force Fz
- 160 N
- Max. force Fz static
- 355 N
- Max. torque Mx
- 6 Nm
- Max. static moment Mx
- 13 Nm
- Max. torque My
- 4 Nm
- Max. static moment My
- 9 Nm
- Max. torque Mz
- 4 Nm
- Max. static moment Mz
- 9 Nm
- Displacement force
- 3.2 N
- Moving mass at 0 mm stroke
- 160 g
- Basic weight with 0 mm stroke
- 600 g
- Additional weight per 10 mm stroke
- 8 g
- Additional moving mass per 10 mm stroke
- 8 g
- Center of gravity of moving mass with 0 mm stroke
- 29 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.5 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS-compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3192932. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
