Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

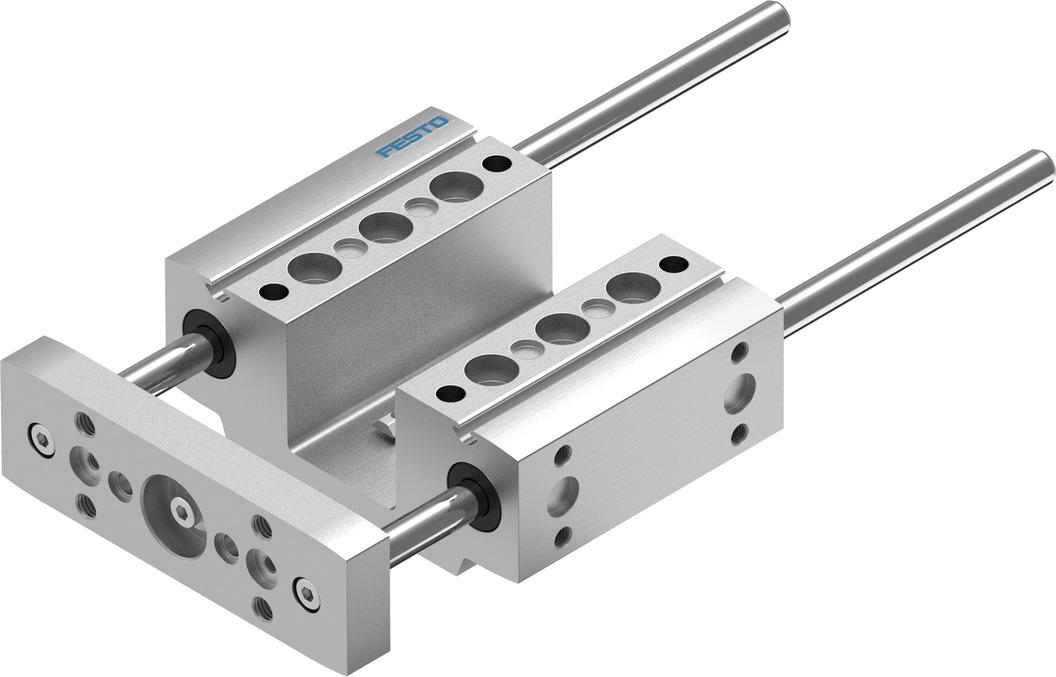

Reference imageConfirm configuration by manufacturer part number.
Festo
3192934
Guide unit EAGF-P1-KF-16-100
The Festo size 16 industrial component features a 100 mm stroke and a recirculating ball bearing guide with a structural design as a guide, providing a reversing backlash of 0 µm and mounting in any position. It achieves a maximum speed of 1 m/s, a maximum acceleration of 25 m/s², and operates within an ambient temperature range of 0 °C to 50 °C while maintaining IP40 protection, VDMA24364-B2-L LABS conformity, and CRC 0 corrosion resistance. The unit supports dynamic forces up to 160 N for Fy and Fz, static forces up to 355 N for Fy and Fz, dynamic torques of 6 Nm for Mx and 4 Nm for My, and static moments of 13 Nm for Mx and 9 Nm for My. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3192934
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3192934.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Stroke
- 100 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Structural design
- Guide
- Max. acceleration
- 25 m/s²
- Max. speed
- 1 m/s
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Max. force Fy
- 160 N
- Max. force Fy static
- 355 N
- Max. force Fz
- 160 N
- Max. force Fz static
- 355 N
- Max. torque Mx
- 6 Nm
- Max. static moment Mx
- 13 Nm
- Max. torque My
- 4 Nm
- Max. static moment My
- 9 Nm
- Max. torque Mz
- 4 Nm
- Max. static moment Mz
- 9 Nm
- Displacement force
- 3.2 N
- Moving mass at 0 mm stroke
- 160 g
- Basic weight with 0 mm stroke
- 600 g
- Additional weight per 10 mm stroke
- 8 g
- Additional moving mass per 10 mm stroke
- 8 g
- Center of gravity of moving mass with 0 mm stroke
- 29 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.5 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS-compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3192934. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
