Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

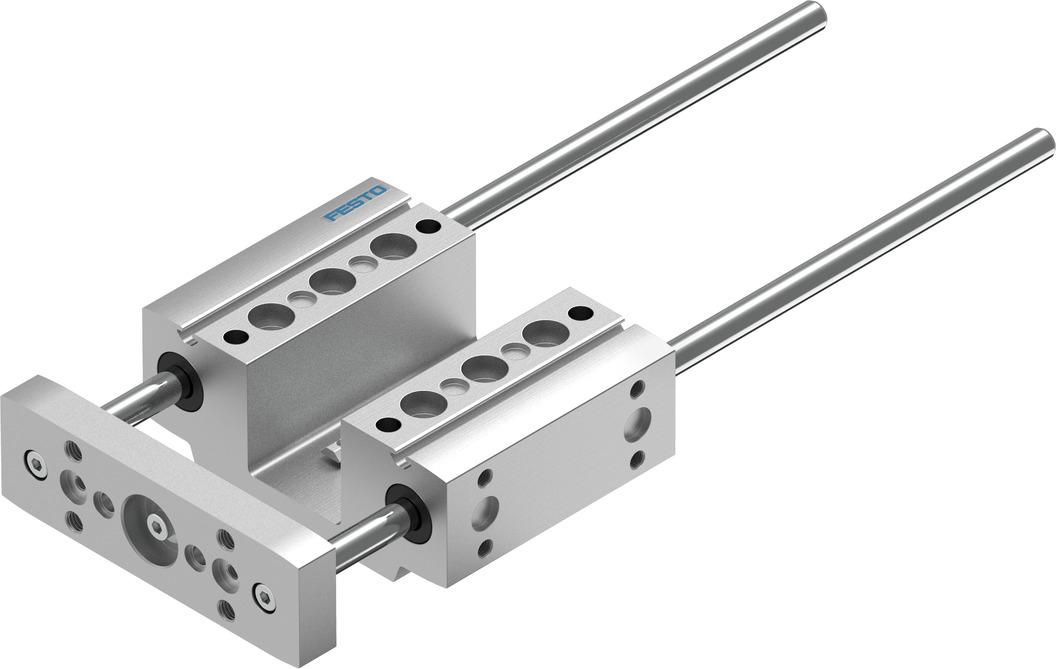

Reference imageConfirm configuration by manufacturer part number.
Festo
3192936
Guide unit EAGF-P1-KF-16-150
The Festo 3192936 is an industrial guide unit featuring a size 16 frame and a 150 mm stroke with a recirculating ball bearing guide and 0 µm reversing backlash. Designed for any mounting position, this component achieves a maximum speed of 1 m/s, a maximum acceleration of 25 m/s², an IP40 degree of protection, and an operating ambient temperature range of 0 °C to 50 °C. It accommodates a maximum dynamic force Fy and Fz of 160 N, a static force Fy and Fz of 355 N, dynamic moments Mx of 6 Nm and My of 4 Nm, and static moments Mx of 13 Nm and My of 9 Nm, with a CRC rating of 0 and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3192936
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3192936.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Stroke
- 150 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Structural design
- Guide
- Max. acceleration
- 25 m/s²
- Max. speed
- 1 m/s
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Max. force Fy
- 160 N
- Max. force Fy static
- 355 N
- Max. force Fz
- 160 N
- Max. force Fz static
- 355 N
- Max. torque Mx
- 6 Nm
- Max. static moment Mx
- 13 Nm
- Max. torque My
- 4 Nm
- Max. static moment My
- 9 Nm
- Max. torque Mz
- 4 Nm
- Max. static moment Mz
- 9 Nm
- Displacement force
- 3.2 N
- Moving mass at 0 mm stroke
- 160 g
- Basic weight with 0 mm stroke
- 600 g
- Additional weight per 10 mm stroke
- 8 g
- Additional moving mass per 10 mm stroke
- 8 g
- Center of gravity of moving mass with 0 mm stroke
- 29 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.5 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS-compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3192936. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
