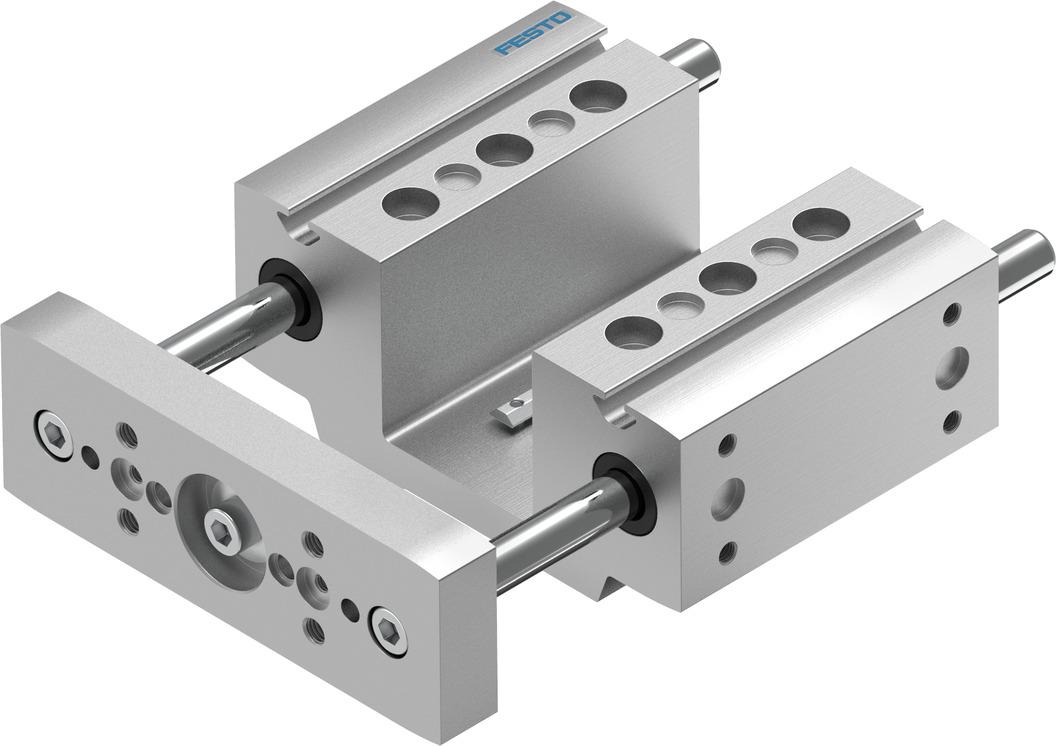

Reference imageConfirm configuration by manufacturer part number.
Festo
3192943
Guide unit EAGF-P1-KF-25-50
The Festo 3192943 is an industrial guide featuring a size 25 format, a 50 mm stroke, and a recirculating ball bearing guide structured for mounting in any position with 0 µm reversing backlash. It operates at an ambient temperature range of 0 °C to 50 °C with a degree of protection of IP40, VDMA24364-B2-L LABS conformity, and a corrosion resistance class of CRC 0 for environments with no corrosion stress. This component supports a maximum speed of 1 m/s, a maximum acceleration of 25 m/s², maximum dynamic forces of 320 N for Fy and Fz, maximum static forces of 415 N for Fy and Fz, maximum torques of 15 Nm for Mx and 10 Nm for My, and maximum static moments of 19 Nm for Mx and 12 Nm for My. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3192943
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3192943.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Stroke
- 50 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Structural design
- Guide
- Max. acceleration
- 25 m/s²
- Max. speed
- 1 m/s
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Max. force Fy
- 320 N
- Max. force Fy static
- 415 N
- Max. force Fz
- 320 N
- Max. force Fz static
- 415 N
- Max. torque Mx
- 15 Nm
- Max. static moment Mx
- 19 Nm
- Max. torque My
- 10 Nm
- Max. static moment My
- 12 Nm
- Max. torque Mz
- 10 Nm
- Max. static moment Mz
- 12 Nm
- Displacement force
- 4 N
- Moving mass at 0 mm stroke
- 300 g
- Basic weight with 0 mm stroke
- 1080 g
- Additional weight per 10 mm stroke
- 12 g
- Additional moving mass per 10 mm stroke
- 12 g
- Center of gravity of moving mass with 0 mm stroke
- 30 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.5 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS-compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3192943. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
