Festo
3192947

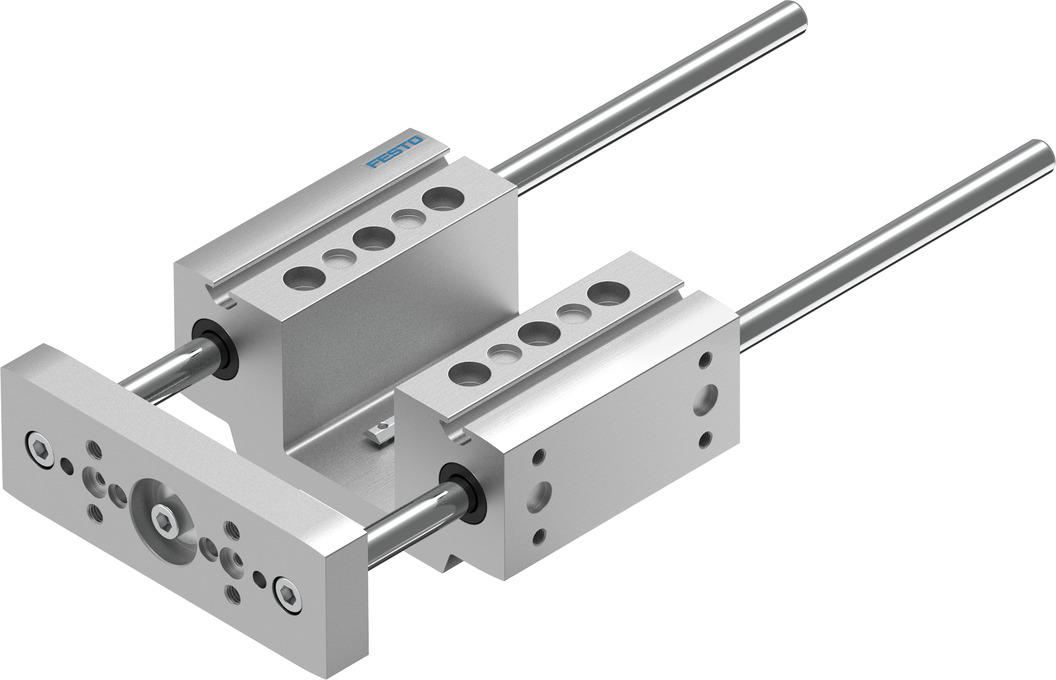

Guide unit EAGF-P1-KF-25-150
The Festo 3192947 industrial component features a size 25 structural design with a recirculating ball bearing guide and a 150 mm stroke. It operates with 0 µm reversing backlash, an IP40 degree of protection, and supports any mounting position within an ambient temperature range of 0 °C to 50 °C. The unit withstands a maximum speed of 1 m/s, a maximum acceleration of 25 m/s², maximum forces Fy and Fz of 320 N with static values of 415 N, maximum torques Mx of 15 Nm and My of 10 Nm, and maximum static moments Mx of 19 Nm and My of 12 Nm under a CRC 0 corrosion resistance class and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for an RFQ.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3192947
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3192947.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Stroke
- 150 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Structural design
- Guide
- Max. acceleration
- 25 m/s²
- Max. speed
- 1 m/s
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Max. force Fy
- 320 N
- Max. force Fy static
- 415 N
- Max. force Fz
- 320 N
- Max. force Fz static
- 415 N
- Max. torque Mx
- 15 Nm
- Max. static moment Mx
- 19 Nm
- Max. torque My
- 10 Nm
- Max. static moment My
- 12 Nm
- Max. torque Mz
- 10 Nm
- Max. static moment Mz
- 12 Nm
- Displacement force
- 4 N
- Moving mass at 0 mm stroke
- 300 g
- Basic weight with 0 mm stroke
- 1080 g
- Additional weight per 10 mm stroke
- 12 g
- Additional moving mass per 10 mm stroke
- 12 g
- Center of gravity of moving mass with 0 mm stroke
- 30 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.5 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS-compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3192947. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
