Festo
3192951

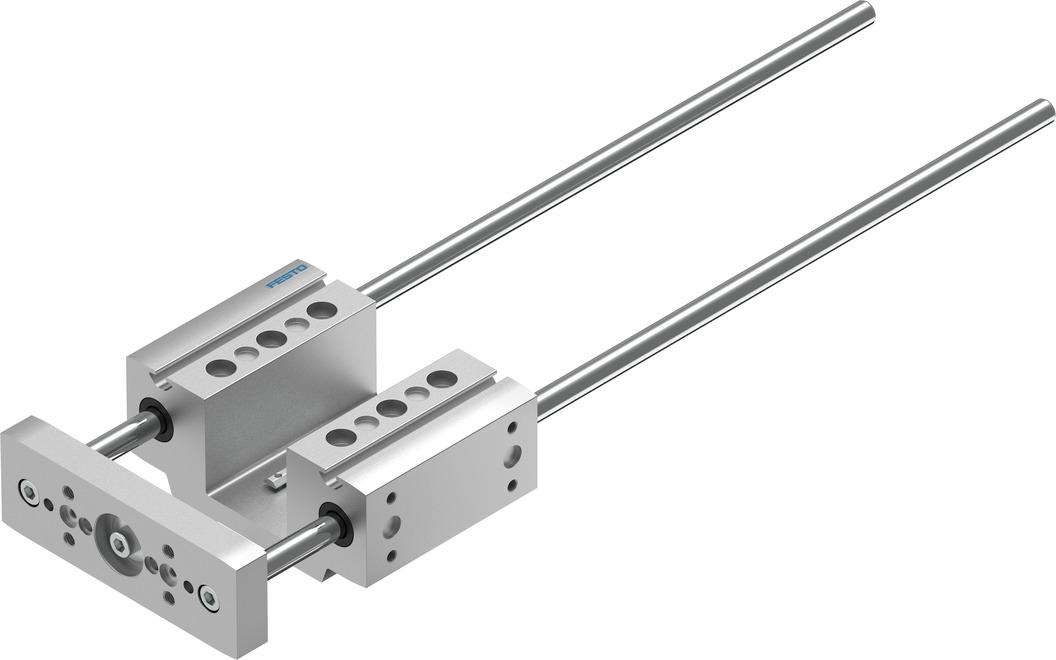

Guide unit EAGF-P1-KF-25-300
The Festo 3192951 industrial component features a size 25 structural guide design with a 300 mm stroke and 0 µm reversing backlash. Incorporating a recirculating ball bearing guide, this unit operates at a maximum speed of 1 m/s and acceleration of 25 m/s² within an ambient temperature range of 0 °C to 50 °C. It supports an IP40 degree of protection, CRC 0 corrosion resistance, and VDMA24364-B2-L LABS conformity, while accommodating maximum dynamic forces of 320 N for Fy and Fz, static forces of 415 N, maximum torques of 15 Nm (Mx) and 10 Nm (My), and static moments of 19 Nm (Mx) and 12 Nm (My) in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this part.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3192951
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3192951.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Stroke
- 300 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Structural design
- Guide
- Max. acceleration
- 25 m/s²
- Max. speed
- 1 m/s
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Max. force Fy
- 320 N
- Max. force Fy static
- 415 N
- Max. force Fz
- 320 N
- Max. force Fz static
- 415 N
- Max. torque Mx
- 15 Nm
- Max. static moment Mx
- 19 Nm
- Max. torque My
- 10 Nm
- Max. static moment My
- 12 Nm
- Max. torque Mz
- 10 Nm
- Max. static moment Mz
- 12 Nm
- Displacement force
- 4 N
- Moving mass at 0 mm stroke
- 300 g
- Basic weight with 0 mm stroke
- 1080 g
- Additional weight per 10 mm stroke
- 12 g
- Additional moving mass per 10 mm stroke
- 12 g
- Center of gravity of moving mass with 0 mm stroke
- 30 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.5 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS-compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3192951. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
