Festo
3192952

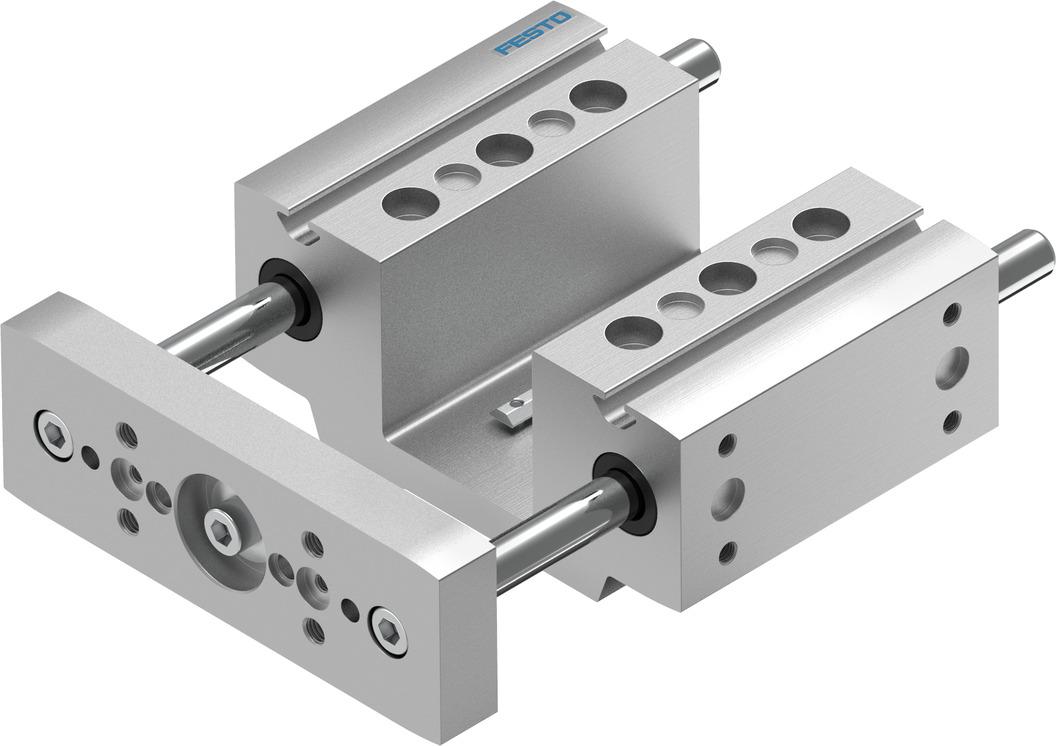

Guide unit EAGF-P1-KF-25-
Festo Guide unit EAGF-P1-KF-25-, part number 3192952, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 3192952
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3192952.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Size
- 25
- Stroke
- 1 mm...300 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Structural design
- Guide
- Max. acceleration
- 25 m/s²
- Max. speed
- 1 m/s
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Max. force Fy
- 320 N
- Max. force Fy static
- 415 N
- Max. force Fz
- 320 N
- Max. force Fz static
- 415 N
- Max. torque Mx
- 15 Nm
- Max. static moment Mx
- 19 Nm
- Max. torque My
- 10 Nm
- Max. static moment My
- 12 Nm
- Max. torque Mz
- 10 Nm
- Max. static moment Mz
- 12 Nm
- Displacement force
- 4 N
- Moving mass at 0 mm stroke
- 300 g
- Basic weight with 0 mm stroke
- 1080 g
- Additional weight per 10 mm stroke
- 12 g
- Additional moving mass per 10 mm stroke
- 12 g
- Center of gravity of moving mass with 0 mm stroke
- 30 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.5 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS-compliant
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3192952. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
