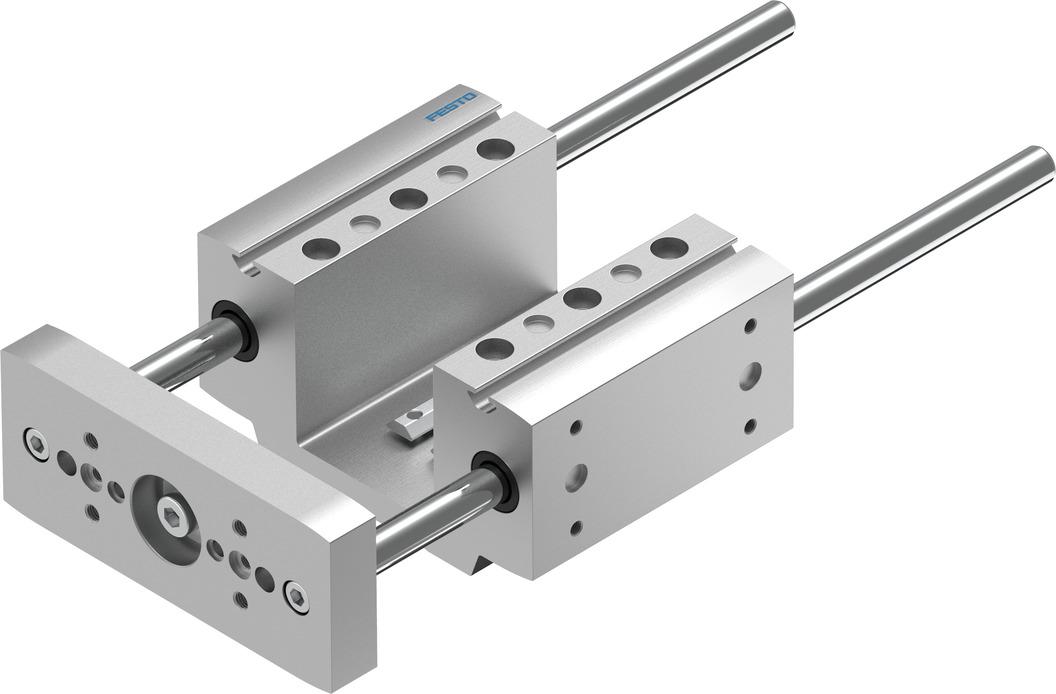

Reference imageConfirm configuration by manufacturer part number.
Festo
3192959
Guide unit EAGF-P1-KF-40-150
The Festo part number 3192959 is an industrial guide component featuring a size 40 profile and a 150 mm stroke length with 0 µm reversing backlash. Incorporating a recirculating ball bearing guide in any mounting position, this unit supports a maximum speed of 1 m/s, maximum acceleration of 25 m/s², IP40 degree of protection, and an ambient operating temperature range of 0 °C to 50 °C. It sustains maximum dynamic forces Fy and Fz of 380 N alongside static forces of 510 N, with maximum torques Mx of 20 Nm and My of 15 Nm, plus static moments Mx of 27 Nm and My of 20 Nm, while maintaining a corrosion resistance class of CRC 0 and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3192959
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3192959.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Stroke
- 150 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Structural design
- Guide
- Max. acceleration
- 25 m/s²
- Max. speed
- 1 m/s
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Max. force Fy
- 380 N
- Max. force Fy static
- 510 N
- Max. force Fz
- 380 N
- Max. force Fz static
- 510 N
- Max. torque Mx
- 20 Nm
- Max. static moment Mx
- 27 Nm
- Max. torque My
- 15 Nm
- Max. static moment My
- 20 Nm
- Max. torque Mz
- 15 Nm
- Max. static moment Mz
- 20 Nm
- Displacement force
- 6 N
- Moving mass at 0 mm stroke
- 560 g
- Basic weight with 0 mm stroke
- 1910 g
- Additional weight per 10 mm stroke
- 18 g
- Additional moving mass per 10 mm stroke
- 18 g
- Center of gravity of moving mass with 0 mm stroke
- 36 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.5 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS-compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3192959. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
