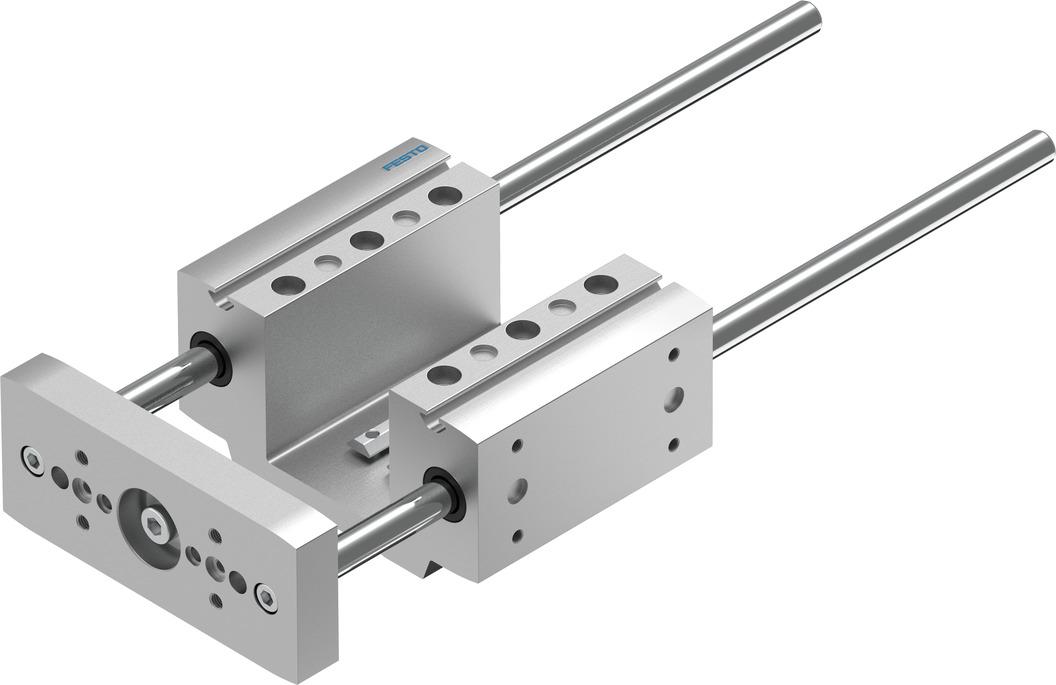

Reference imageConfirm configuration by manufacturer part number.
Festo
3192961
Guide unit EAGF-P1-KF-40-200
The Festo 3192961 industrial component features a size 40 structural design with a 200 mm stroke and a recirculating ball bearing guide operating with 0 µm reversing backlash. It accommodates any mounting position, delivering a maximum speed of 1 m/s, a maximum acceleration of 25 m/s², and an IP40 degree of protection within an ambient temperature range of 0 °C to 50 °C. This unit withstands maximum dynamic forces of 380 N for Fy and Fz, static forces of 510 N, maximum torques of 20 Nm (Mx) and 15 Nm (My), and static moments of 27 Nm (Mx) and 20 Nm (My), alongside 0 - No corrosion stress CRC and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3192961
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3192961.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Stroke
- 200 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Structural design
- Guide
- Max. acceleration
- 25 m/s²
- Max. speed
- 1 m/s
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Max. force Fy
- 380 N
- Max. force Fy static
- 510 N
- Max. force Fz
- 380 N
- Max. force Fz static
- 510 N
- Max. torque Mx
- 20 Nm
- Max. static moment Mx
- 27 Nm
- Max. torque My
- 15 Nm
- Max. static moment My
- 20 Nm
- Max. torque Mz
- 15 Nm
- Max. static moment Mz
- 20 Nm
- Displacement force
- 6 N
- Moving mass at 0 mm stroke
- 560 g
- Basic weight with 0 mm stroke
- 1910 g
- Additional weight per 10 mm stroke
- 18 g
- Additional moving mass per 10 mm stroke
- 18 g
- Center of gravity of moving mass with 0 mm stroke
- 36 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.5 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS-compliant
