Festo
32690

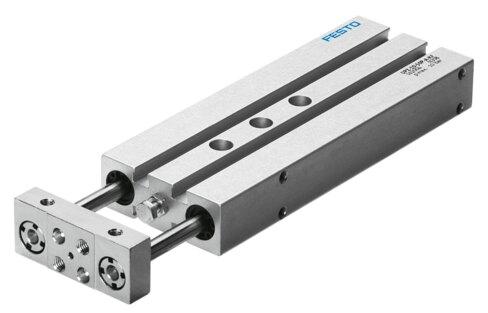

Twin cylinder DPZ-16-80-P-A
The Festo part number 32690 is a double-acting industrial drive unit featuring a yoke structural design, a 16 mm piston diameter, and an 80 mm stroke with a plain-bearing guide. It operates on compressed air according to ISO 8573-1:2010 [7:4:4] within a pressure range of 1 bar to 10 bar, providing elastic cushioning rings or pads at both ends and position sensing via proximity switch. The unit accommodates an ambient temperature range of -20 °C to 80 °C, achieves a moderate corrosion stress rating (CRC 2), and delivers a theoretical retracting force of 180 N at 6 bar with a maximum payload of 9 N at a defined distance xs of 0 mm. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 32690
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 32690.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 0 mm
- Stroke
- 80 mm
- Adjustable end position range/length
- 10 mm
- Piston diameter
- 16 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.15 Nm
- Max. payload as a function of the stroke at dened distance xs
- 9 N
- Theoretical force at 6 bar, retracting
- 180 N
- Theoretical force at 6 bar, advancing
- 242 N
- Product weight
- 603 g
- Alternative connections
- See product drawing
- Pneumatic connection
- M5
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR
- Housing material
- Wrought aluminum alloy
- Piston rod material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 32690. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
