Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

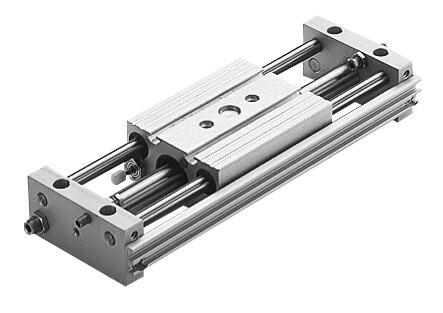

Reference imageConfirm configuration by manufacturer part number.
Festo
32782
Linear unit SLM-16- -KF-A
The Festo 32782 is a double-acting industrial component featuring a 16 mm piston diameter, an adjustable stroke ranging from 10 mm to 800 mm, and a recirculating ball bearing guide. Operating at a maximum pressure of 0.7 MPa (7 bar), this unit utilizes compressed air in accordance with ISO 8573-1:2010 [7:-:-] with optional oil lubrication, delivering a theoretical force of 121 N for both retracting and advancing strokes at 6 bar. It incorporates elastic cushioning rings/pads alongside a pneumatic shock absorber with a hard characteristic curve, while supporting position sensing via proximity switches and inductive sensors across any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 32782
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 32782.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...800 mm
- Piston diameter
- 16 mm
- Cushioning
- Elastic cushioning rings/pads at both ends | Pneumatic shock absorber, hard characteristic curve
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Position sensing
- Via proximity switch | For inductive sensors
- Variants
- Standard design | Hollow guide rod | Hollow guide rod and reversing plate
- Operating pressure
- 0.7 MPa | 7 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...60 °C
- Theoretical force at 6 bar, retracting
- 121 N
- Theoretical force at 6 bar, advancing
- 121 N
- Moving mass
- 1080 g
- Additional moving mass per 10 mm stroke
- 15 g
- Basic weight with 0 mm stroke
- 1730 g
- Additional weight per 10 mm stroke
- 15 g
- Pneumatic connection
- M5
- Cover material
- Aluminum
- Seals material
- PA | TPE-U(PU)
- Housing material
- Aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 32782. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
