Reference imageConfirm configuration by manufacturer part number.
Festo
32786

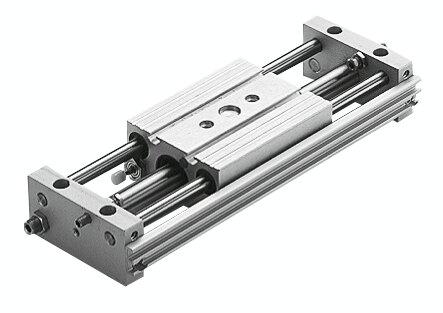

Linear unit SLM-40- -KF-A
This double-acting industrial component from Festo features a 40 mm piston diameter with a variable stroke length ranging from 10 mm to 1500 mm. Operating at 7 bar (0.7 MPa) using compressed air conforming to ISO 8573-1:2010 [7:-:-], the unit delivers a theoretical force of 754 N in both advancing and retracting directions. The assembly utilizes elastic cushioning rings, a pneumatic shock absorber with a hard characteristic curve, and a recirculating ball bearing guide, while supporting position sensing via proximity switches and inductive sensors. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 32786
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 32786.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...1500 mm
- Piston diameter
- 40 mm
- Cushioning
- Elastic cushioning rings/pads at both ends | Pneumatic shock absorber, hard characteristic curve
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Position sensing
- Via proximity switch | For inductive sensors
- Variants
- Standard design | Hollow guide rod | Hollow guide rod and reversing plate
- Operating pressure
- 0.7 MPa | 7 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...60 °C
- Theoretical force at 6 bar, retracting
- 754 N
- Theoretical force at 6 bar, advancing
- 754 N
- Moving mass
- 5080 g
- Additional moving mass per 10 mm stroke
- 85 g
- Basic weight with 0 mm stroke
- 9550 g
- Additional weight per 10 mm stroke
- 85 g
- Pneumatic connection
- G1/4
- Cover material
- Aluminum
- Seals material
- PA | TPE-U(PU)
- Housing material
- Aluminum
