Festo
32954

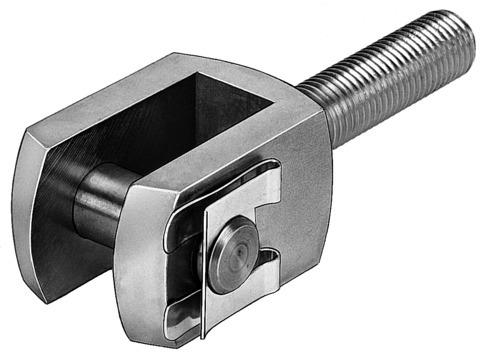

Rod clevis SGA-M10X1,25
The Festo part number 32954 is an industrial component featuring an M10x1.25 external threaded connection, an angle compensator of plus or minus 120 degrees, and a radial deviation of plus or minus 5 mm. Constructed with a galvanized steel bolt, galvanized steel rod eye, and galvanized spring steel fuse, this 129 g RoHS compliant unit supports a maximum load capacity of 0.9 kN and a corrosion resistance class of 1 for low corrosion stress within an ambient temperature range of -40 °C to 150 °C. It accommodates any mounting position and meets VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 32954
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 32954.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M10x1.25
- Radial deviation +/-
- 5 mm
- Angle compensator +/-
- 120 deg
- Mounting position
- Any
- Threaded connection
- External thread M10x1.25
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...150 °C
- Max. load capacity
- 0.9 kN
- Product weight
- 129 g
- Note on materials
- RoHS compliant
- Bolt material
- Steel | Galvanized
- Material of rod eye
- Steel | Galvanized
- Fuse material
- Spring steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 32954. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
