Festo
32964

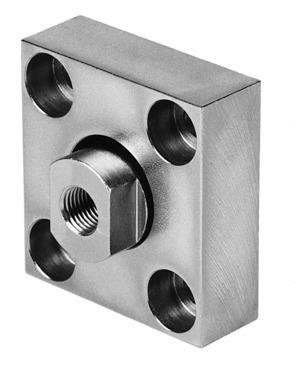

Coupling piece KSG-M12X1,25
The Festo part number 32964 is an industrial component featuring an M12x1.25 internal threaded connection and an M12x1.25 size, constructed from galvanized steel for both the mounting and threaded coupling materials with RoHS compliance and a CRC of 1 for low corrosion stress. This unit weighs 447 g, conforms to VDMA24364-B2-L LABS (PWIS), operates across an ambient temperature range of -40 °C to 150 °C in any mounting position, and excludes metals with over 1% copper mass, circuit boards, lines, electrical push-in connectors, and coils regarding Li-ion battery production suitability. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 32964
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 32964.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M12x1.25
- Mounting position
- Any
- Threaded connection
- Internal thread M12x1.25
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 1% by mass of copper are excluded from use. | Circuit boards, lines, electrical push-in connectors and coils are excluded
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 447 g
- Note on materials
- RoHS compliant
- Mounting material
- Steel | Galvanized
- Threaded coupling material
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 32964. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
