Festo
3324

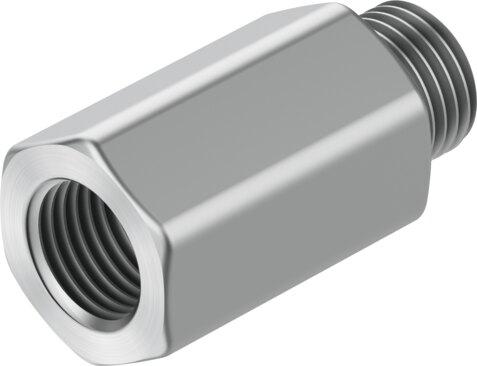

Non return valve H-1/8-A/I
The Festo 3324 is an in-line industrial component featuring a non-return valve function with G1/8 pneumatic connections on both ports. Constructed with a brass housing and NBR seals, it delivers a normal nominal flow rate of 280 l/min across an operating pressure range of 0.04 MPa to 0.8 MPa. This unit operates within a medium and ambient temperature range of -10 °C to 60 °C, weighs 21 g, and is compatible with compressed air meeting ISO 8573-1:2010 [7:-:-] standards requiring subsequent oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3324
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3324.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Non-return function
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
- Type of mounting
- In-line installation
- Normal nominal ow rate (normalized to DIN 1343)
- 280 l/min
- Operating pressure
- 0.04 MPa...0.8 MPa | 0.4 bar...8 bar
- Ambient temperature
- -10 °C...60 °C
- Housing material
- Brass
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -10 °C...60 °C
- Product weight
- 21 g
- Seals material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3324. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
