Festo
3324111

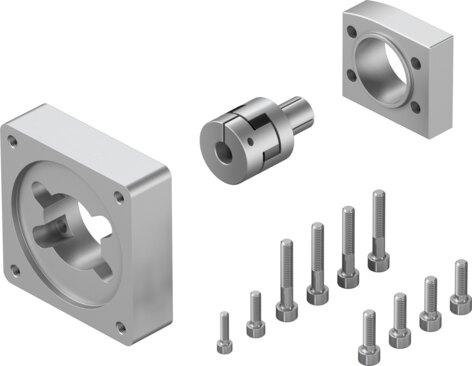

Axial kit EAMM-A-N38-87A
Engineered by Festo, the part number 3324111 is an industrial component featuring a nominal length of 42 mm, a transferable torque of 12.5 Nm, and a maximum rotational speed of 8000 rpm. This RoHS-compliant unit weighs 430 g, exhibits a mass moment of inertia of 14.5 kgmm², and utilizes an actuator interface code of N38 with a motor-in interface code of 87A. Protected to IP40 and conforming to VDMA24364-B2-L LABS standards, it operates within an ambient temperature range of -10 °C to 60 °C, supports a relative air humidity of 0 to 95%, and accommodates storage temperatures between -25 °C and 60 °C in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3324111
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3324111.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 42 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 14.5 kgmm²
- Transferable torque
- 12.5 Nm
- Product weight
- 430 g
- Interface code, actuator
- N38
- Interface code, motor in
- 87A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3324111. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
