33295

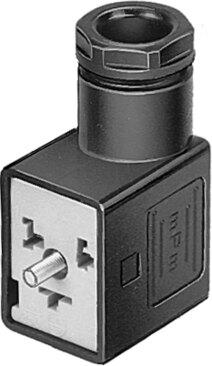

Name: Festo 33295 Plug socket MSSD-V
Brand: Festo

Plug socket MSSD-V

Manufactured by Festo, part number 33295 is an industrial component designed for mounting on an air solenoid valve with an M3 central screw and an angled cable outlet that can be rotated through 180 degrees in any mounting position, weighing 18 g. This component features a 3-pin rectangular MSV Form B socket with a screw terminal supporting a DC and AC operating voltage range of 0 V to 250 V, a current rating of 16 A at 40 degrees C, a protective earth connection, a Pg9 cable fitting for 6 mm to 8 mm cable diameters, a nominal conductor cross section of 1.5 mmÂ², and an IP65 degree of protection in the mounted state. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 33295
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 33295.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Type of mounting: On air solenoid valve with M3 central screw
Cable outlet: Angled
Note on cable outlet: Can be rotated through 180°
Mounting position: Any
Product weight: 18 g
Electrical connection: 3-pin | Socket | Angled socket | Form B | As per DIN EN 175301-803 | Rectangular design MSV
Electrical connection 1, design: Square
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled
Electrical connection 1, number of pins/wires: 3
Electrical connection 2: Screw terminal
DC operating voltage range: 0 V...250 V
Operating voltage range AC: 0 V...250 V
Current rating at 40° C: 16 A
Protective earth connection: Available
Cable tting: Pg9
Cable diameter: 6 mm...8 mm
Nominal conductor cross section: 1.5 mm²
Degree of protection: IP65
Note on degree of protection: In mounted state
Ambient temperature: -25 °C...90 °C
CE marking (see declaration of conformity): As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK RoHS instructions | To UK instructions for electrical equipment
LABS (PWIS) conformity: VDMA24364-B2-L
Housing material: Polymer
Housing colour: Black

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 33295. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
