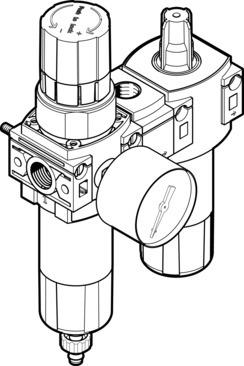

Name: Festo 3339282 Air preparation combination unit FRC-1/4-DB-7-MINI-KA-MPA
Brand: Festo

Air preparation combination unit FRC-1/4-DB-7-MINI-KA-MPA

The Festo part number 3339282 is a mini series DB industrial component featuring a structural design that combines a filter regulator distribution module and an air line lubricator with a manually rotating condensate drain having a maximum volume of 13 ml and a 40 µm grade of filtration. Operating within a pressure range of 1.5 bar to 10 bar (0.15 MPa to 1 MPa), this unit provides a regulation range of 0.5 bar to 7 bar, a maximum standard flow rate of 2500 l/min, and a standard nominal flow rate of 700 l/min utilizing compressed air as per ISO 8573-1:2010 [7:9:4]. The assembly includes a pressure gauge and a rotary knob with detent for actuator locking, operates with a vertical mounting position of +/- 5°, and maintains a constant outlet pressure with secondary exhausting and return flow function without primary pressure compensation or flow control exhaust options. Please submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3339282
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3339282.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Mini
Width: 108 mm
Exhaust air function: Without ow control option
Series: DB
Actuator lock: Rotary knob with detent
Mounting position: Vertical +/- 5°
Condensate drain: Manually rotating
Structural design: Filter regulator distribution module air line lubricator
Max. condensate volume: 13 ml
Grade of ltration: 40 µm
Controller function: Outlet pressure constant | With secondary exhausting | With return ow function | Without primary pressure compensation
Pressure gauge: with pressure gauge
Operating pressure: 0.15 MPa...1 MPa | 1.5 bar...10 bar
Pressure regulation range: 0.5 bar...7 bar
Max. pressure hysteresis: 0.5 bar
Max. standard ow rate: 2500 l/min
Standard nominal ow rate: 700 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:9:4]
Information on operating and pilot media: Operation with oil lubrication not possible
Approved oils: Festo special oil in 1 L container | Order reference: 152 811 OFSW-32 | ARAL Vitam GF 32 | ESSO Nuto H 32 | MOBIL DTE 24 | SHELL Tellus Oil DO 32 | Viscosity range 32mm²/s at 40 °C | Viscosity range 32 mm2/s (cSt) at 40 °C
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -5 °C...50 °C
