Festo
33481

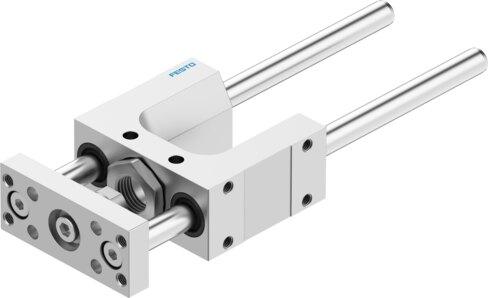

Guide unit FEN-12/16- -KF
The Festo part number 33481 is an industrial guide featuring a recirculating ball bearing and a size of 12/16 with a stroke range from 1 mm to 200 mm. Designed for mounting in any position, this structural guide operates within an ambient temperature range of -20 °C to 80 °C and conforms to VDMA24364-B2-L LABS (PWIS) standards. It handles a maximum dynamic force Fy and Fz of 520 N, static force Fy and Fz of 830 N, dynamic torques Mx, My, and Mz of 12 Nm, 7 Nm, and 7 Nm, and static moments Mx, My, and Mz of 20 Nm, 12 Nm, and 12 Nm respectively. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 33481
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 33481.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 12/16
- Stroke
- 1 mm...200 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 520 N
- Max. force Fy static
- 830 N
- Max. force Fz
- 520 N
- Max. force Fz static
- 830 N
- Max. torque Mx
- 12 Nm
- Max. static moment Mx
- 20 Nm
- Max. torque My
- 7 Nm
- Max. static moment My
- 12 Nm
- Max. torque Mz
- 7 Nm
- Max. static moment Mz
- 12 Nm
- Displacement force
- 15 N
- Moving mass at 0 mm stroke
- 161 g
- Additional moving mass per 10 mm stroke
- 12 g
- Basic weight with 0 mm stroke
- 429 g
- Additional weight per 10 mm stroke
- 12 g
- Center of gravity of moving mass with 0 mm stroke
- 40 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.9 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 33481. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
