Festo
33483

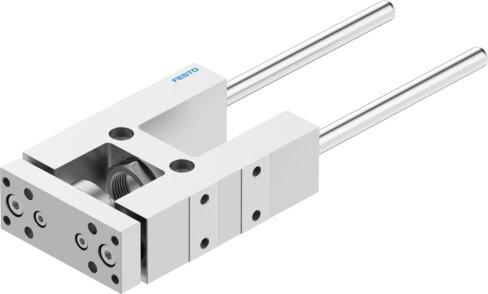

Guide unit FEN-25- -KF
The Festo part number 33483 is an industrial guide featuring a size 25 structural design and a recirculating ball bearing guide supporting a stroke range from 2 mm to 250 mm in any mounting position. It accommodates a maximum dynamic force Fy and Fz of 520 N, static force Fy and Fz of 830 N, dynamic moments Mx, My, and Mz up to 15 Nm, 20 Nm, and 20 Nm respectively, and static moments Mx of 24 Nm alongside My and Mz of 31 Nm. Operating within an ambient temperature range of -20 °C to 80 °C, this component exhibits a displacement force of 15 N, a moving mass of 269 g at 0 mm stroke, VDMA24364-B2-L LABS conformity, and explosion protection adhering strictly to the certificate documentation. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 33483
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 33483.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Stroke
- 2 mm...250 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 520 N
- Max. force Fy static
- 830 N
- Max. force Fz
- 520 N
- Max. force Fz static
- 830 N
- Max. torque Mx
- 15 Nm
- Max. static moment Mx
- 24 Nm
- Max. torque My
- 20 Nm
- Max. static moment My
- 31 Nm
- Max. torque Mz
- 20 Nm
- Max. static moment Mz
- 31 Nm
- Displacement force
- 15 N
- Moving mass at 0 mm stroke
- 269 g
- Additional moving mass per 10 mm stroke
- 12 g
- Basic weight with 0 mm stroke
- 813 g
- Additional weight per 10 mm stroke
- 12 g
- Center of gravity of moving mass with 0 mm stroke
- 42 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.7 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 33483. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
