Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

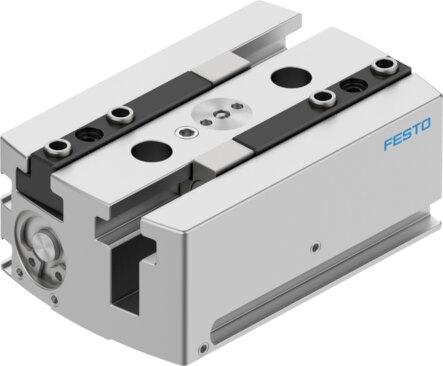

Reference imageConfirm configuration by manufacturer part number.
Festo
3361479
Parallel gripper HGPL-14-20-A-B
The Festo part number 3361479 is a double-acting pneumatic parallel gripper featuring two jaws, a size 14 rating, and a stroke of 20 mm per jaw operating within a pressure range of 3 bar to 8 bar. Its structural design incorporates a double piston, guide, piston gate valve, T-shape, and gear rack/pinion supporting position sensing via proximity switch with a repetition accuracy of 0.03 mm and a maximum operating frequency of 1 Hz. Additional verified attributes include a maximum interchangeability of 0.2 mm, maximum gripper jaw angular play of 0.2 degrees, maximum gripper jaw backlash of 0.05 mm, rotational symmetry of 0.2 mm, minimum opening and closing times of 120 ms and 110 ms at 6 bar respectively, and a maximum mass of 80 g per external gripper finger in any mounting position without gripping force backup. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3361479
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3361479.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 14
- Stroke per gripper jaw
- 20 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.2 deg
- Max. gripper jaw backlash Sz
- 0.05 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.03 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Double piston | Guide | Piston gate valve | T-shape | Gear rack/pinion
- Position sensing
- Via proximity switch
- Operating pressure
- 3 bar...8 bar
- Max. operating frequency of pneumatic gripper
- 1 Hz
- Min. opening time at 6 bar
- 120 ms
- Min. closing time at 6 bar
- 110 ms
- Max. mass per external gripper nger
- 80 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 5 °C...60 °C
- Gripping force per gripper jaw at 6 bar, opening
- 126 N | 63 N
- Gripping force per gripper jaw at 6 bar, closing
- 158 N | 79 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3361479. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
