Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

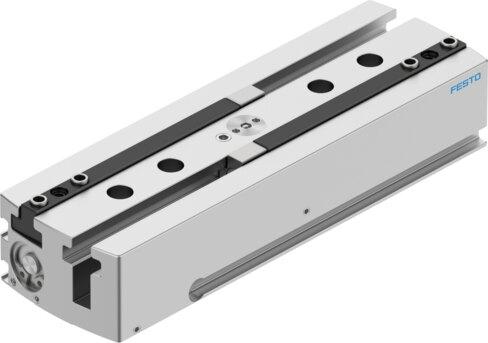

Reference imageConfirm configuration by manufacturer part number.
Festo
3361481
Parallel gripper HGPL-14-60-A-B
The Festo size 14 industrial component (Part Number 3361481) is a double-acting parallel pneumatic gripper featuring two jaws, an actuator system utilizing a double piston, guide, piston gate valve, T-shape, and gear rack/pinion structural design. It operates within a pressure range of 3 bar to 8 bar, delivering a stroke of 60 mm per gripper jaw with a repetition accuracy of 0.03 mm, a maximum operating frequency of 1 Hz, and position sensing via a proximity switch. Additional verified attributes include a maximum interchangeability of 0.2 mm, maximum gripper jaw angular play ax and ay of 0.2 deg, maximum gripper jaw backlash Sz of 0.05 mm, rotational symmetry of 0.2 mm, no gripping force backup, any mounting position, a minimum opening time of 270 ms and closing time of 230 ms at 6 bar, and a maximum mass of 80 g per external gripper finger. Submit the exact part number, quantity, and application requirements to receive a quote for this part.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3361481
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3361481.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 14
- Stroke per gripper jaw
- 60 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.2 deg
- Max. gripper jaw backlash Sz
- 0.05 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.03 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Double piston | Guide | Piston gate valve | T-shape | Gear rack/pinion
- Position sensing
- Via proximity switch
- Operating pressure
- 3 bar...8 bar
- Max. operating frequency of pneumatic gripper
- 1 Hz
- Min. opening time at 6 bar
- 270 ms
- Min. closing time at 6 bar
- 230 ms
- Max. mass per external gripper nger
- 80 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 5 °C...60 °C
- Gripping force per gripper jaw at 6 bar, opening
- 126 N | 63 N
- Gripping force per gripper jaw at 6 bar, closing
- 158 N | 79 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3361481. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
