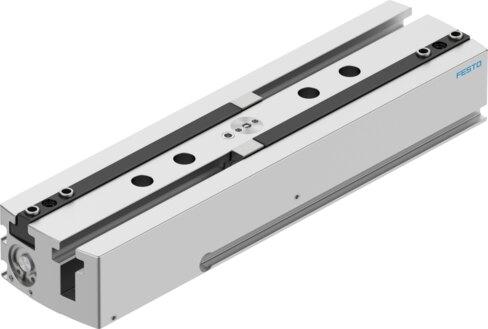

Reference imageConfirm configuration by manufacturer part number.
Festo
3361482
Parallel gripper HGPL-14-80-A-B
Engineered with a double-acting pneumatic actuator system and two parallel gripper jaws, this Festo industrial component (Part Number 3361482) delivers an 80 mm stroke per jaw within a size 14 structural design featuring a double piston, guide, piston gate valve, T-shape, and gear rack/pinion. It operates at a pressure range of 3 bar to 8 bar, achieving a maximum operating frequency of 1 Hz with a repetition accuracy of 0.03 mm, a maximum interchangeability and rotational symmetry of 0.2 mm, a maximum jaw angular play of 0.2 degrees, and a maximum jaw backlash of 0.05 mm. Position sensing is accomplished via proximity switch, supporting any mounting position, a minimum opening time of 286 ms and closing time of 270 ms at 6 bar, and a maximum mass of 80 g per external gripper finger without gripping force backup. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3361482
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3361482.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 14
- Stroke per gripper jaw
- 80 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.2 deg
- Max. gripper jaw backlash Sz
- 0.05 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.03 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Double piston | Guide | Piston gate valve | T-shape | Gear rack/pinion
- Position sensing
- Via proximity switch
- Operating pressure
- 3 bar...8 bar
- Max. operating frequency of pneumatic gripper
- 1 Hz
- Min. opening time at 6 bar
- 286 ms
- Min. closing time at 6 bar
- 270 ms
- Max. mass per external gripper nger
- 80 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 5 °C...60 °C
- Gripping force per gripper jaw at 6 bar, opening
- 126 N | 63 N
- Gripping force per gripper jaw at 6 bar, closing
- 158 N | 79 N
