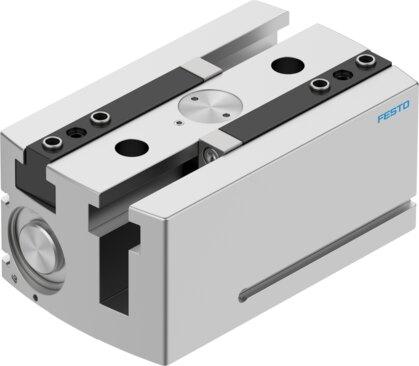

Reference imageConfirm configuration by manufacturer part number.
Festo
3361489
Parallel gripper HGPL-40-60-A-B
The Festo part number 3361489 is a size 40 double-acting pneumatic parallel gripper featuring two jaws, a 60 mm stroke per jaw, and a structural design utilizing a double piston, guide, piston gate valve, T-shape, and gear rack/pinion. Operating between 3 bar and 8 bar, this component achieves a repetition accuracy of 0.03 mm, a maximum operating frequency of 1 Hz, and minimum opening and closing times of 430 ms at 6 bar, with position sensing via a proximity switch and any mounting position. It accommodates a maximum mass of 420 g per external gripper finger while maintaining a maximum interchangeability of 0.2 mm, jaw angular play of 0.2 degrees, jaw backlash of 0.05 mm, and rotational symmetry of 0.2 mm without gripping force backup. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3361489
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3361489.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Stroke per gripper jaw
- 60 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.2 deg
- Max. gripper jaw backlash Sz
- 0.05 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.03 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Double piston | Guide | Piston gate valve | T-shape | Gear rack/pinion
- Position sensing
- Via proximity switch
- Operating pressure
- 3 bar...8 bar
- Max. operating frequency of pneumatic gripper
- 1 Hz
- Min. opening time at 6 bar
- 430 ms
- Min. closing time at 6 bar
- 430 ms
- Max. mass per external gripper nger
- 420 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 5 °C...60 °C
- Gripping force per gripper jaw at 6 bar, opening
- 1038 N | 519 N
- Gripping force per gripper jaw at 6 bar, closing
- 1216 N | 608 N
