Festo
3361491

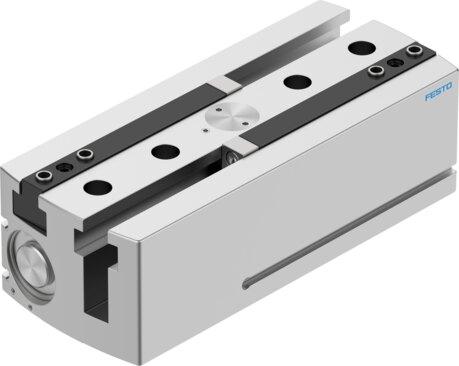

Parallel gripper HGPL-40-100-A-B
The Festo part number 3361491 is a size 40 pneumatic parallel gripper featuring two jaws, a double-acting mode of operation, and a 100 mm stroke per gripper jaw with a maximum operating frequency of 1 Hz. Built with a structural design comprising a double piston, guide, piston gate valve, T-shape, and gear rack/pinion, this component operates between 3 bar and 8 bar, delivers a repetition accuracy of 0.03 mm, and supports position sensing via proximity switch in any mounting position. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3361491
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3361491.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Stroke per gripper jaw
- 100 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.2 deg
- Max. gripper jaw backlash Sz
- 0.05 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.03 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Double piston | Guide | Piston gate valve | T-shape | Gear rack/pinion
- Position sensing
- Via proximity switch
- Operating pressure
- 3 bar...8 bar
- Max. operating frequency of pneumatic gripper
- 1 Hz
- Min. opening time at 6 bar
- 620 ms
- Min. closing time at 6 bar
- 690 ms
- Max. mass per external gripper nger
- 420 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 5 °C...60 °C
- Gripping force per gripper jaw at 6 bar, opening
- 1038 N | 519 N
- Gripping force per gripper jaw at 6 bar, closing
- 1216 N | 608 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3361491. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
