Festo
33891

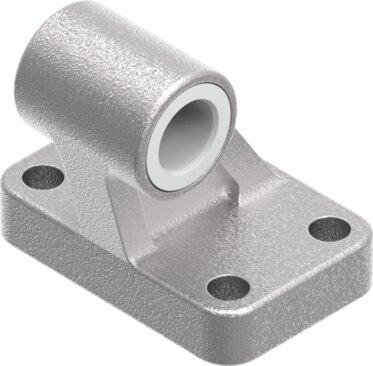

Clevis foot LNG-40
The Festo 33891 is an industrial component of size 40 based on the ISO 15552 norm. Constructed from quenched and tempered steel mounting material with a PA bearing, this RoHS-compliant part supports a maximum load capacity of 1.5 kN and a corrosion resistance class of CRC 2 for moderate corrosion stress. It operates within an ambient temperature range of -40 °C to 80 °C, conforms to VDMA24364-B2-L LABS standards, and has a product weight of 161 g. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 33891
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 33891.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...80 °C
- Max. load capacity
- 1.5 kN
- Product weight
- 161 g
- Note on materials
- RoHS compliant
- Mounting material
- Quenched and tempered steel
- Material of bearing
- PA
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 33891. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
