Festo
33892

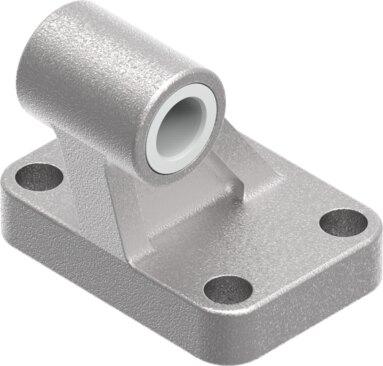

Clevis foot LNG-50
The Festo part number 33892 is an industrial component sized at 50, manufactured based on norm ISO 15552. Constructed with quenched and tempered steel mounting material and a PA bearing material, it features a corrosion resistance class of CRC 2 for moderate corrosion stress and a VDMA24364-B2-L LABS conformity. This RoHS-compliant unit weighs 281 g, operates within an ambient temperature range of -40 °C to 80 °C, and supports a maximum load capacity of 2.5 kN. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 33892
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 33892.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...80 °C
- Max. load capacity
- 2.5 kN
- Product weight
- 281 g
- Note on materials
- RoHS compliant
- Mounting material
- Quenched and tempered steel
- Material of bearing
- PA
