Reference imageConfirm configuration by manufacturer part number.
Festo
33895

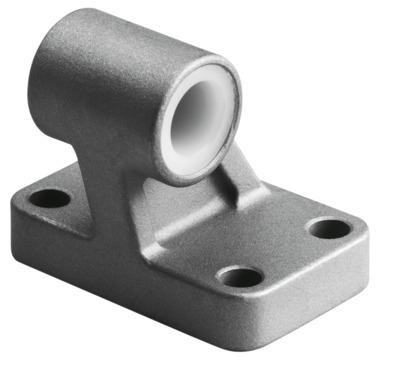

Clevis foot LNG-100
The Festo part number 33895 is an industrial component of size 100 based on the ISO 15552 norm, which was previously also designated under VDMA 24562, ISO 6431, NF E49 003.1, and UNI 10290. Constructed with spheroidal graphite cast iron mounting material and a PA bearing, this RoHS-compliant unit weighs 1139 g and supports a maximum load capacity of 9 kN within an ambient temperature range of -40 °C to 80 °C. It features a corrosion resistance class (CRC) of 1 for low corrosion stress and conforms to VDMA24364-B2-L LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 33895
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 33895.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 100
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...80 °C
- Max. load capacity
- 9 kN
- Product weight
- 1139 g
- Note on materials
- RoHS compliant
- Mounting material
- Spheroidal graphite cast iron
- Material of bearing
- PA
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 33895. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
