Festo
33896

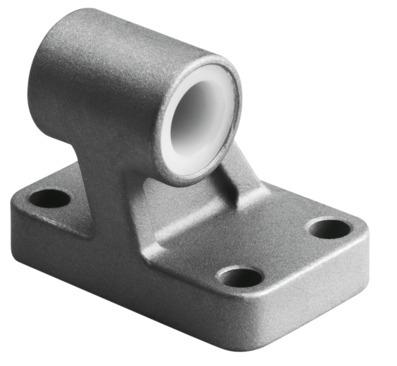

Clevis foot LNG-125
The Festo part number 33896 is an industrial component of size 125 built on the ISO 15552 norm, previously aligning with VDMA 24562, ISO 6431, NF E49 003.1, and UNI 10290 standards. This unit weighs 2543 g and features spheroidal graphite cast iron mounting material paired with a PA bearing, exhibiting a corrosion resistance class of CRC 1 for low corrosion stress and VDMA24364-B2-L LABS conformity with RoHS-compliant materials. It operates within an ambient temperature range of -40 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 33896
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 33896.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 125
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...80 °C
- Product weight
- 2543 g
- Note on materials
- RoHS compliant
- Mounting material
- Spheroidal graphite cast iron
- Material of bearing
- PA
