Festo
3394

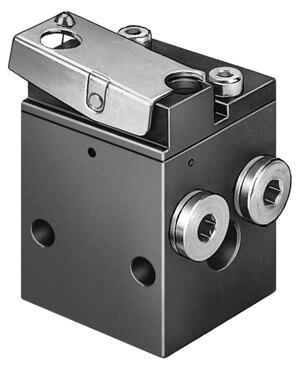

Stem actuated valve VS-4-1/8
The Festo part number 3394 is a 4/2-way monostable industrial component featuring a mechanical actuation type, plate seat structural design, and soft sealing principle. This piloted valve operates within a pressure range of 0.35 MPa to 0.8 MPa and delivers a normal nominal flow rate between 140 l/min and 147 l/min through G1/8 pneumatic working ports with an adjustable exhaust air function. Built with internal pilot air supply and mechanical spring reset, the unit achieves a corrosion resistance class of 2 and holds ATEX certification for zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3394
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3394.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 4/2-way, monostable
- Actuation type
- Mechanical
- Normal nominal ow rate (normalized to DIN 1343)
- 140 l/min...147 l/min
- Pneumatic working port
- G1/8
- Operating pressure
- 0.35 MPa...0.8 MPa | 3.5 bar...8 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Nominal width
- 3.5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Note on forced dynamization
- Switching frequency min. 1/year
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Actuating force
- 3.2 N
- Product weight
- 220 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
