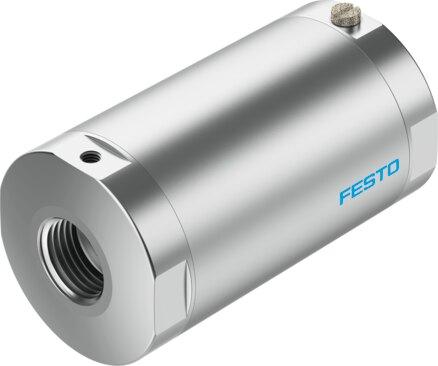

Name: Festo 3412426 Pinch valve VZQA-C-M22C-15-GG-V2V4E-6
Brand: Festo

Pinch valve VZQA-C-M22C-15-GG-V2V4E-6

The Festo 3412426 is a pneumatically operated, soft-sealing pinch valve featuring a 2/2-way closed, monostable function with a nominal width DN of 15 and G1/2 fitting connections. This externally controlled component supports a medium pressure range of 0 bar to 6 bar, an operating pressure of 3.5 bar to 6 bar, and accommodates compressed air or water media up to a maximum viscosity of 4000 mm²/s. Designed for in-line installation in any mounting position, it utilizes a mechanical spring reset method and an M5 auxiliary pilot air port 12. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3412426
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3412426.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: Pinch valve, pneumatically operated
Actuation type: Pneumatic
Sealing principle: Soft
Mounting position: Any
Type of mounting: In-line installation
Fitting connection: G1/2
Nominal width DN: 15
Valve function: 2/2-way, closed, monostable
Flow direction: Reversible
Medium pressure: 0 MPa...0.6 MPa | 0 bar...6 bar | 0 psi...87 psi
Note on the medium pressure: Use in the vacuum range was tested up to -0.09 MPa with the air at | room temperature. Depending on the application, a counter-vacuum | may have to be created on the control side to guarantee the media ow.
Operating pressure: 0.35 MPa...0.6 MPa | 3.5 bar...6 bar | 50.75 psi...87 psi
Nominal pressure of tting PN: 10
Burst pressure: 1.6 MPa | 16 bar | 232 psi
Reset method: Mechanical spring
Type of control: Externally controlled
Auxiliary pilot air port 12: M5
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:1]
Medium: Compressed air as per ISO 8573-1:2010 [-:-:1] | Water
Max. viscosity: 4000 mm²/s

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 3412426. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
