Name: Festo 3412430 Pinch valve VZQA-C-M22C-15-S1S1-V2V4S1-2
Brand: Festo

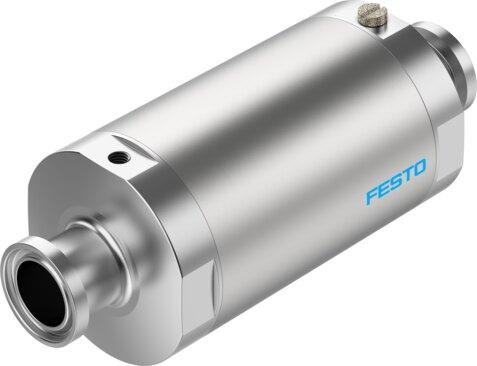

Pinch valve VZQA-C-M22C-15-S1S1-V2V4S1-2

The Festo 3412430 is a pneumatically operated, soft-sealing pinch valve featuring a 2/2-way closed monostable function with a nominal width DN of 15 and ASME-BPE Type A clamp fitting connections for in-line installation in any mounting position. It operates with a medium pressure range from 0 to 0.2 MPa and an operating pressure of 0.35 to 0.6 MPa, utilizing compressed air or water up to a maximum viscosity of 4000 mm²/s alongside a mechanical spring reset method. Auxiliary pilot air port 12 utilizes M5 threading for compressed air media conforming to ISO 8573-1:2010 [7:4:1], while vacuum testing has been verified up to -0.09 MPa at room temperature. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3412430
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3412430.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: Pinch valve, pneumatically operated
Actuation type: Pneumatic
Sealing principle: Soft
Mounting position: Any
Type of mounting: In-line installation
Fitting connection: Clamp according to ASME-BPE Type A
Nominal width DN: 15
Valve function: 2/2-way, closed, monostable
Flow direction: Reversible
Medium pressure: 0 MPa...0.2 MPa | 0 bar...2 bar | 0 psi...29 psi
Note on the medium pressure: Use in the vacuum range was tested up to -0.09 MPa with the air at | room temperature. Depending on the application, a counter-vacuum | may have to be created on the control side to guarantee the media ow.
Operating pressure: 0.35 MPa...0.6 MPa | 3.5 bar...6 bar | 50.75 psi...87 psi
Nominal pressure of tting PN: 10
Burst pressure: 1.6 MPa | 16 bar | 232 psi
Reset method: Mechanical spring
Type of control: Externally controlled
Auxiliary pilot air port 12: M5
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:1]
Medium: Compressed air as per ISO 8573-1:2010 [-:-:1] | Water
Max. viscosity: 4000 mm²/s

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 3412430. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
