Festo
3433264

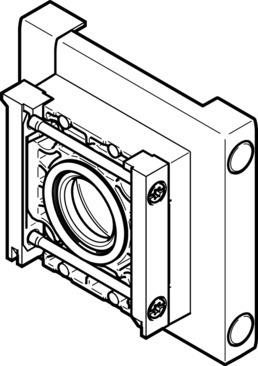

Module connector MS6-9-AMV-EX
The Festo part number 3433264 is a size 9 industrial component from the MS series weighing 220 g with a medium temperature range of -10 °C to 60 °C. Constructed with a die-cast aluminum sub-base and module connector, steel screws, and NBR seals, this RoHS-compliant unit achieves corrosion resistance class CRC 2 and VDMA24364-B1/B2-L LABS conformity. It provides explosion prevention and protection rated for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 environments. Submit your exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3433264
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3433264.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 9
- Series
- MS
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Product weight
- 220 g
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
- Seals material
- NBR
- Module connector material
- Die-cast aluminum
- Material of screws
- Steel
