Festo
3434

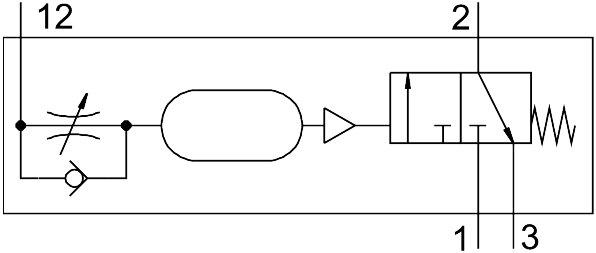

Pneumatic timer VZA-3-1/4
The Festo part number 3434 is an industrial component designed for an operating pressure range of 0 bar to 10 bar with a normal nominal flow rate of 600 l/min normalized to DIN 1343. This unit features an adjustable delay time of 0 s to 30 s, pneumatic connections of G1/8 and G1/4, and through-hole mounting while maintaining RoHS compliant materials and VDMA24364-B2-L LABS conformity. It utilizes compressed air as an operating medium according to ISO 8573-1:2010 [7:-:-], allows operation with oil lubrication which is required for further use, and provides explosion prevention and protection for ATEX Zone 1, Zone 2, Zone 21, and Zone 22. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3434
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3434.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Operating pressure
- 0 bar...10 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 600 l/min
- Adjustable delay time
- 0 s...30 s
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Type of mounting
- With through-hole
- Pneumatic connection
- G1/8 | G1/4
- Note on materials
- RoHS compliant
