Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

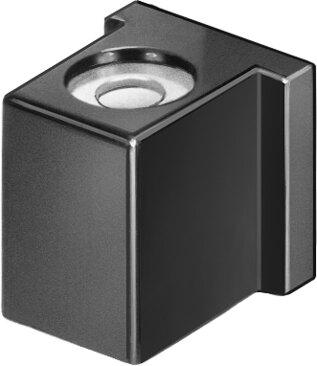

Reference imageConfirm configuration by manufacturer part number.
Festo
34412
Solenoid coil MSFG-24/42-50/60-DS-OD
The Festo 34412 is an industrial component featuring a 100% duty cycle and a minimum pick-up time of 10 ms, operating with a power factor cos φ of 0.7. Designed with a solenoid coil of duroplast, copper, and steel alongside a copper winding, this IP65-rated part supports any mounting position via a knurled nut and accepts an electrical connection as per DIN EN 175301-803. It functions within an ambient temperature range of -5 °C to 40 °C, accommodates coil characteristics of 24 V DC at 4.5 W or 42 V AC (50/60 Hz) with an initial power of 9.0 VA and holding power of 7.0 VA, and maintains permissible voltage fluctuations of +/- 10% alongside frequency fluctuations of +/- 5%. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34412
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34412.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Switching position indication
- No
- Min. pick-up time
- 10 ms
- Duty cycle
- 100%
- Power factor cos {phi}
- 0.7
- Coil characteristics
- 24 V DC: 4.5 W | 42 V AC: 50/60 Hz, initial power 9.0 VA, holding power 7.0 VA
- Permissible frequency uctuations
- +/- 5%
- Permissible voltage uctuations
- +/- 10%
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Degree of protection
- IP65
- Ambient temperature
- -5 °C...40 °C
- Max. tightening torque of socket
- 0.4 Nm
- Product weight
- 55 g
- Electrical connection
- As per DIN EN 175301-803
- Type of mounting
- With knurled nut
- Note on materials
- RoHS compliant
- Solenoid coil material
- Duroplast | Copper | Steel
- Material of winding
- Copper
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 34412. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
