Festo
34424

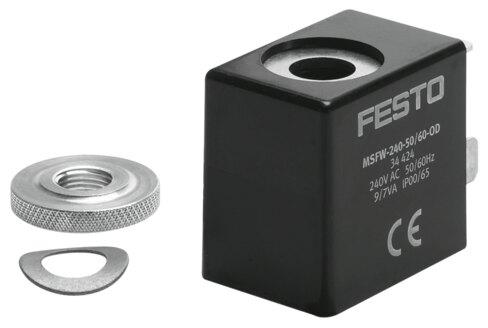

Solenoid coil MSFW-240-50/60-OD
The Festo 34424 is an industrial component featuring a 240 V AC (50/60 Hz) solenoid coil constructed from duroplast, copper, and steel with a copper winding. This IP65-rated part operates at a 100% duty cycle with an initial power of 9.0 VA, a holding power of 7.0 VA, a power factor of 0.7, and a minimum pick-up time of 10 ms within an ambient temperature range of -5 °C to 40 °C. It includes a 3-pin electrical connection with plug tags, mounts in any position using a knurled nut, and complies with RoHS, EU low voltage, and UK electrical equipment directives. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34424
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34424.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Switching position indication
- No
- Min. pick-up time
- 10 ms
- Duty cycle
- 100%
- Power factor cos {phi}
- 0.7
- Coil characteristics
- 240 V AC: 50/60 Hz, initial power 9.0 VA, holding power 7.0 VA
- Permissible frequency uctuations
- +/- 5%
- Permissible voltage uctuations
- +/- 10%
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Degree of protection
- IP65
- Ambient temperature
- -5 °C...40 °C
- Max. tightening torque of socket
- 0.4 Nm
- Product weight
- 55 g
- Electrical connection
- 3-pin | Plug ags with connection diagram as per Festo standard for MSSD-F
- Type of mounting
- With knurled nut
- Note on materials
- RoHS compliant
- Solenoid coil material
- Duroplast | Copper | Steel
- Material of winding
- Copper
